KANA B-type double idler sprocket, 16 teeth, outer diameter 54, WID35B16D12, 1 pc

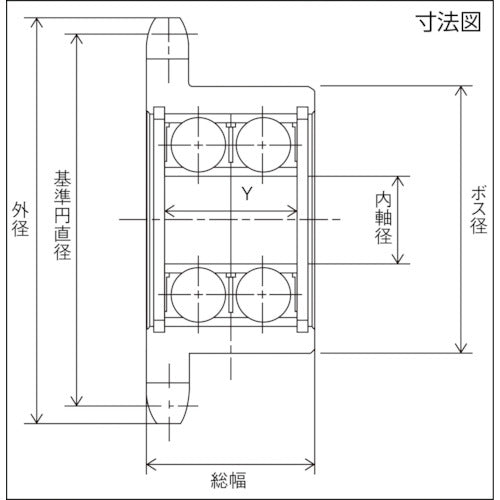

Catalog number: WID35B16D12 Features: ●Since it uses a B-shape, it is easy to design if the drive and driven sides are the same shape. Applications: ●Tensioner. Specifications: ●Chain No.: 35 ●Number of teeth: 16 ●Outer diameter (mm): 54 ●Reference circle diameter (mm): 48.82 ●Boss diameter (mm): 38 ●Inner ring diameter (mm): 12 ●Shape: B-shape ●Total width (mm): 22 ●Compatible bearing: 6001ZZ ●Compatible idler shaft: IDP6001W ●B-shape ●Uses two bearings ●Product with excellent load-bearing capacity ●Tooth width T: 4.3 ●Bearing used: 6001ZZ Material/Finish: ●Carbon steel for mechanical structures
