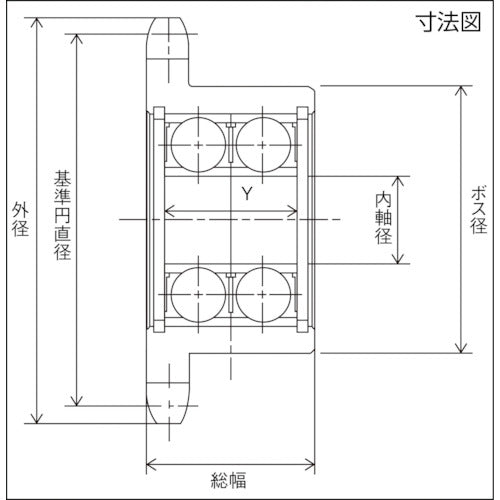

KANA B-type double idler sprocket, 18 teeth, outer diameter 60, WID35B18D15, 1 pc

Catalog number: WID35B18D15 Features: ●Since it uses a B-shape, it is easy to design if the drive and driven sides are the same shape. Applications: ●Tensioner. Specifications: ●Chain No.: 35 ●Number of teeth: 18 ●Outer diameter (mm): 60 ●Reference circle diameter (mm): 54.85 ●Boss diameter (mm): 44 ●Inner ring diameter (mm): 15 ●Shape: B-shape ●Total width (mm): 28 ●Compatible bearing: 6202ZZ ●Compatible idler shaft: IDP6202W ●B-shape ●Uses two bearings ●Product with excellent load-bearing capacity ●Tooth width T: 4.3 ●Bearing used: 6202ZZ Material/Finish: ●Carbon steel for mechanical structures
