片山チエン（株）

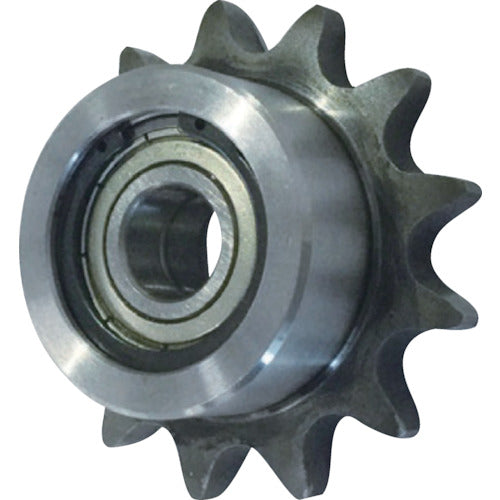

KANA B-type double idler sprocket, number of teeth 25, outer diameter 81, WID35B25D20, 1 pc

KANA B-type double idler sprocket, number of teeth 25, outer diameter 81, WID35B25D20, 1 pc

JAN： 　
Bearings, drive equipment, transmission parts Idler sprocket KANA Tensioner Mechatronics Parts sprocket
¥2,477
¥2,477
Sale Sold out
Shipping calculated at checkout.

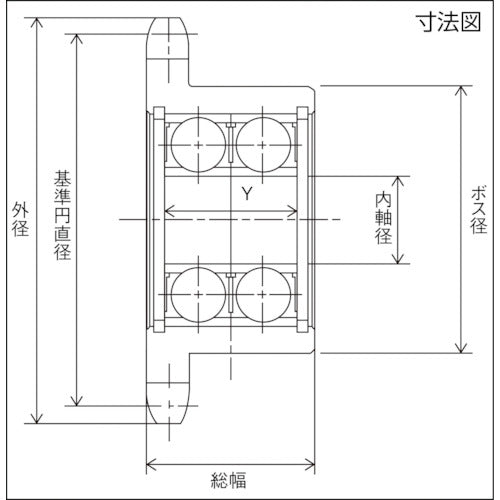

Catalog number: WID35B25D20 Features: ●Since it uses a B-shape, it is easy to design if the drive and driven sides are the same shape. Applications: ●Tensioner. Specifications: ●Chain No.: 35 ●Number of teeth: 25 ●Outer diameter (mm): 81 ●Reference circle diameter (mm): 76 ●Boss diameter (mm): 60 ●Inner ring diameter (mm): 20 ●Shape: B-shape ●Total width (mm): 35 ●Compatible bearing: 6204ZZ ●Compatible idler shaft: IDP6204W ●B-shape ●Uses two bearings ●Product with excellent load-bearing capacity ●Tooth width T: 4.3 ●Bearing used: 6204ZZ Material/Finish: ●Carbon steel for mechanical structures
View full details
