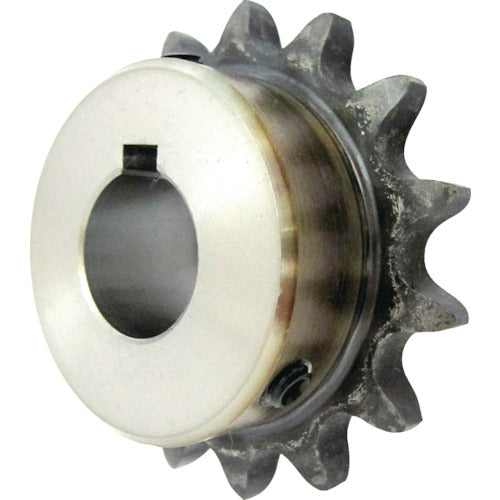

KANA FB sprocket 40, number of teeth 15, outer diameter 67, shaft hole diameter 22, FBN40B15D22, 1 piece

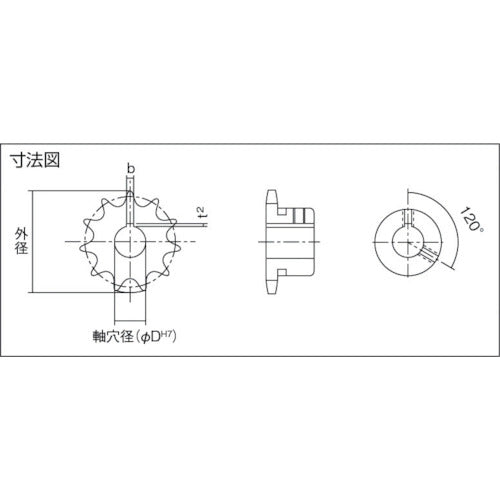

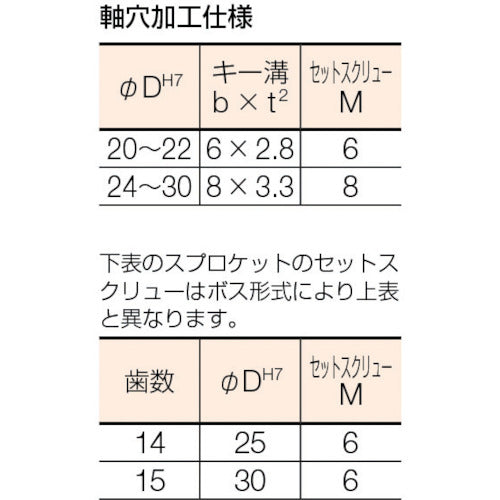

Catalog number: FBN40B15D22 Features: ● A pre-processed product with shaft holes, keyways, set screws, and screws. Ready to use, shortens setup time. ● Reliable quality and stable precision. Shaft holes, keyways, and set screws are all processed within JIS tolerances, so there is no need to worry about problems. ● New JIS keyway specifications. Specifications: ● Number of teeth: 15 ● Outer diameter (mm): 67 ● Shaft hole diameter (mm): 22 ● Boss diameter (mm): 46 ● Boss length (mm): 22 ● Compatible chain: No. 40 ● Chain pitch: 12.7 mm ● Roller link inner width: 7.95 mm ● Tooth width: 7.2 mm ● New JIS keyway specifications Material/Finish: ● Carbon steel for machine construction ● Heat treatment: High-frequency hardening of teeth
