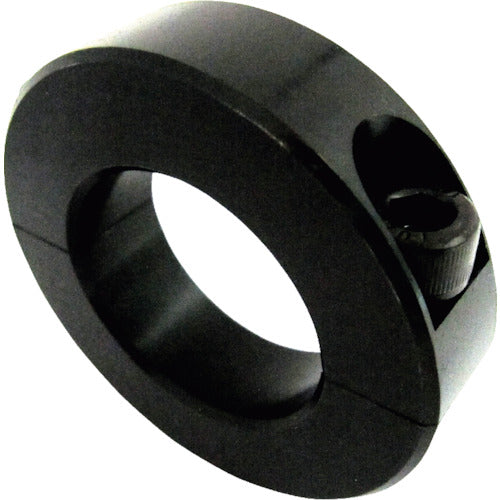

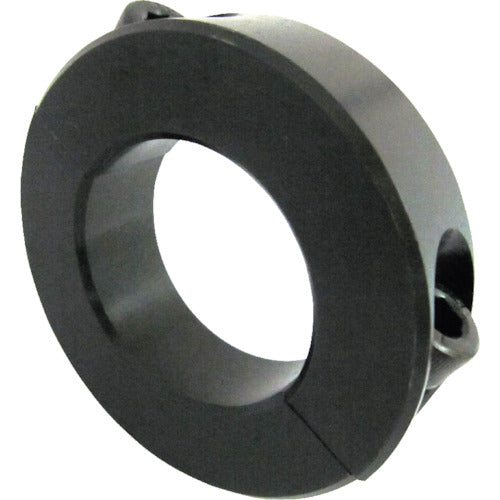

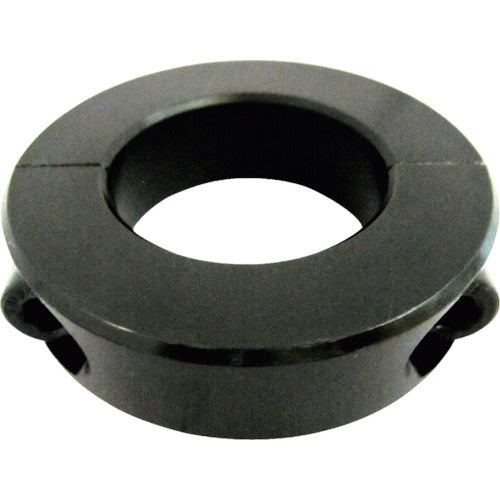

KANA KSC shaft color black dye inner diameter 15 outer diameter 35 width 12 KSC1512SP 1 piece
KANA KSC shaft color black dye inner diameter 15 outer diameter 35 width 12 KSC1512SP 1 piece
Regular price
¥664
Regular price
Sale price
¥664
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability

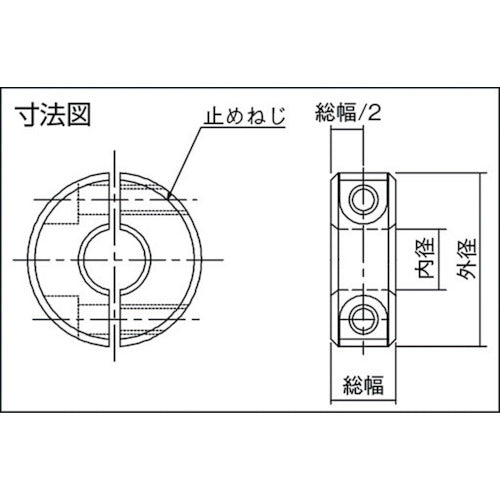

Catalog number: KSC1512SP Features: ●The shaft collar can be separated, so it is a split type that can be installed without removing the front and rear parts. Applications: ●Idler sprocket positioning. ●Fixing the bearing housing and shaft. ●Positioning sprockets and timing pulleys. Specifications: ●Inner diameter (mm): 15 ●Outer diameter (mm): 35 ●Total width (mm): 12 ●Tightening screw: M5 ●Surface treatment: Blackening ●Set collar type: Split type ●Set screw: M4 Material/Finish: ●Carbon steel for machine construction ●Surface treatment: Blackening
