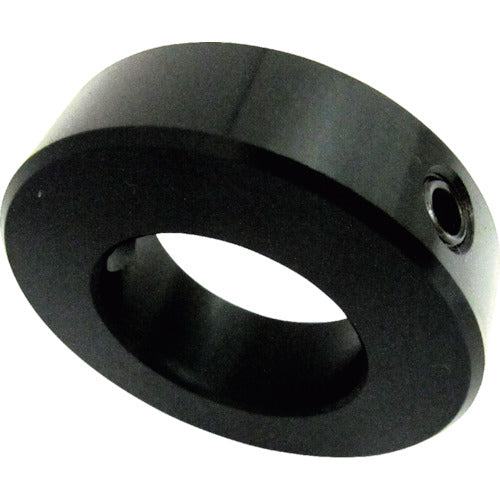

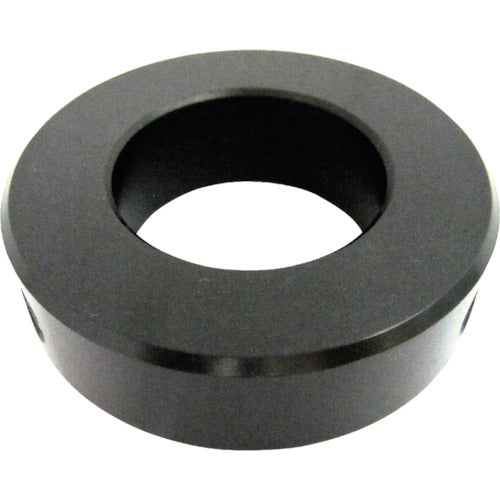

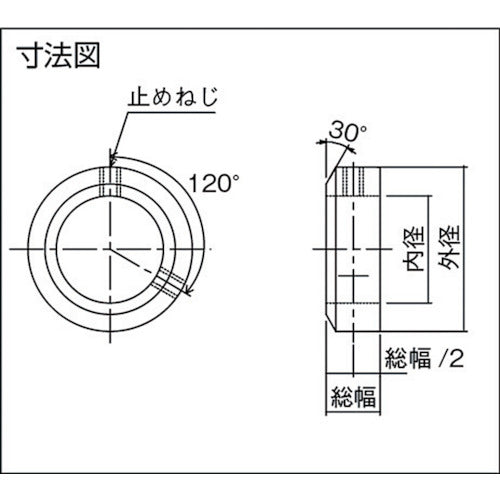

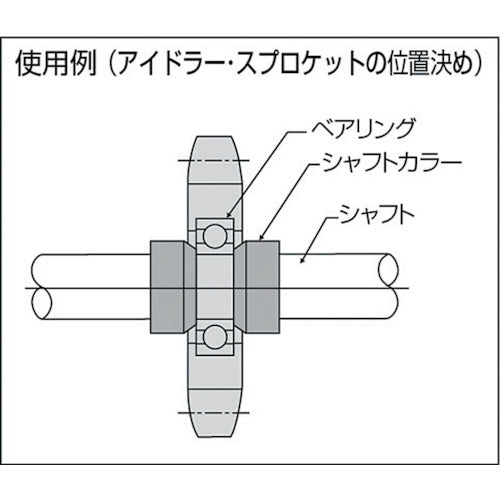

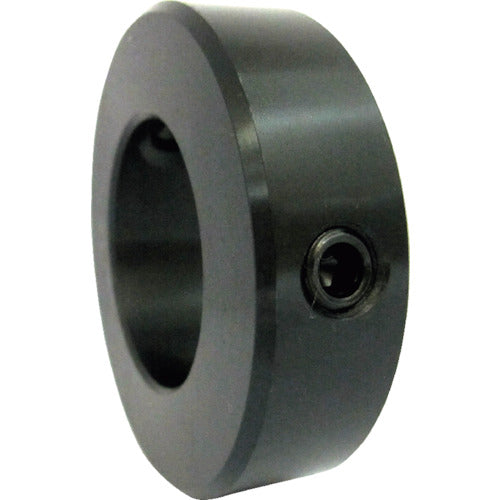

Catalogue number: KSC3518 Features: ● Useful when adjusting the position on-site. ● Can be fixed without scratching the shaft. Applications: ● Positioning of idlers and sprockets. ● Fixing of bearing housings and shafts. ● Positioning of sprockets and timing pulleys. Specifications: ● Inner diameter (mm): 35 ● Outer diameter (mm): 55 ● Total width (mm): 18 ● Fastening screw: M8 ● Surface treatment: Blackening ● Set collar type: Standard type ● Set screw: M8 x 8 Material/Finish: ● Carbon steel for mechanical structures ● Surface treatment: Blackening
