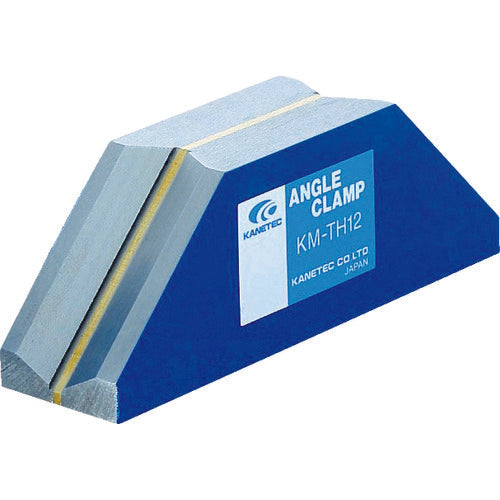

KANETEC Angle Clamp KM-TH12A 1 piece

Catalog number: KM-TH12A Features: ●All sides of the trapezoid are strong magnets, and angles of 45°, 90°, and 135° can be used. ●The V-groove can also be used to fix curved surfaces. Applications: ●For temporary holding during temporary welding and assembly work, and for holding gauges and rulers. Specifications: ●Adhesive force (N): 450 ●Depth (mm): 30 ●Height (mm): 40 ●Upper base (mm): 50 ●Lower base (mm): 115 ●Holding angle: 45°, 90°, 135° ●No ON/OFF function Materials/Finish: ●Magnet: Alnico magnet ●Body: Steel (SS400) ●Body: Brass (C2801P) ●Spacer: Aluminum
