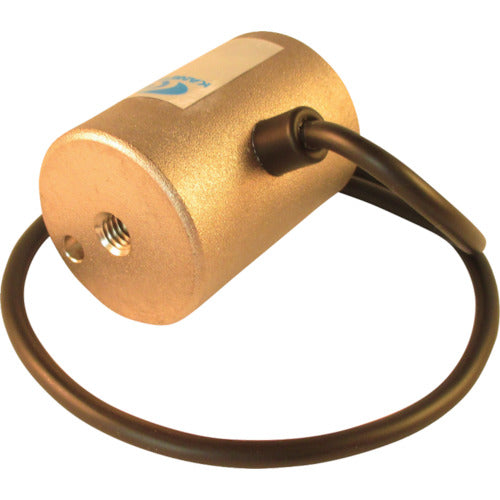

KANETEC Hybrid Holder Diameter 40mm x Height 40mm KE-4HA 1 unit

Catalogue number: KE-4HA Features: ●Continuous use is possible. ●Residual adhesive force is extremely small, allowing for speedy release of workpieces. This allows for high-speed operation. ●Permanent magnet + electromagnetic type, suitable for building high-cycle lines. ●Can be used in automated manufacturing lines. Applications: ●Wide range of uses, from various types of automated equipment to the handle parts of industrial robots. ●Wide range of applications, from material feeding for automatic presses and preventing deflection of shearing materials, to various types of automated equipment and the handle parts of industrial robots. Specifications: ● Adhesive force (N): 400 ● Height (mm): 40 ● Diameter (mm): 40 ● Voltage (V): DC24 ● Current (A): 0.15 ● Power cord length (m): 0.3 ● Compatible rectifier: RH-H303A RH-H303A-C2 ● Duty rate: Continuous 100% ED ● Power cord length: 0.3m (0.2m for KE-2HA only) ● Central screw hole on the back: M6 x 1.00 depth 6mm ● Duty rate: Continuous 100% ED Note: ● A model with the cord pulled out from the top (KE-HA-U) can also be manufactured.
