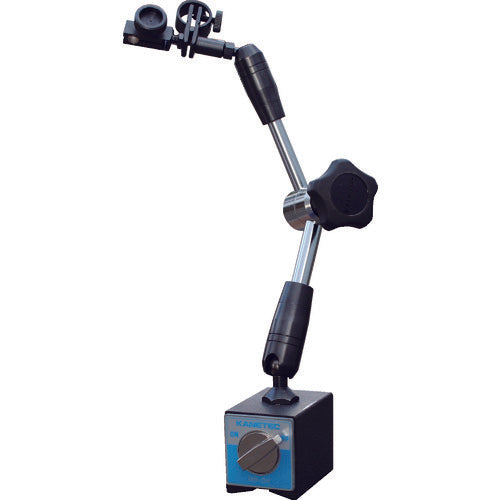

KANETEC Magnetic Stand (Arm Type) High Lock Base Hydraulic Type Adhesive Force 1000N MB-OX 1 Piece

Catalog number: MB-OX Features: ●All positions can be locked at once by tightening a single dial. ●Since it is hydraulic, it can provide higher fixing force than mechanical locking. ●With fine adjustment function. ●Maintenance such as oil replenishment is required. ●The arm part is freely movable and can be locked at any position by tightening the knob. Uses: ●Used as a measuring instrument holder when measuring with dial gauge type measuring instruments. Specifications: ●Adhesive force (N): 1000 ●Magnet width (mm): 50 ●Magnet depth (mm): 73 ●Magnet height (mm): 55 ●Arm mounting screw: M8 x 1.25 ●Measuring instrument mounting hole: 6mm, 8mm ●Measuring instrument mounting: 6mm, 8mm holes, with dovetail groove ●With fine adjustment function Caution: ●Sensitive to changes in ambient temperature. (The fixing force changes.)
