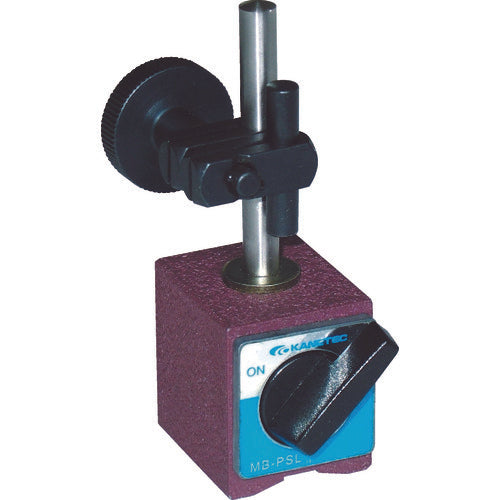

KANETEC Magnetic Base Small MB-PSL 1 piece

Catalogue number: MB-PSL Features: ●The smallest magnet base in the series, it is effective for measurement work in narrow spaces. ●Although it is small, it generates a strong magnetic force on the lower surface (V-shape). Applications: ●Used as a measuring instrument holder. ●Small size, suitable for narrow spaces. Specifications: ●Adhesive force (N): 300 ●Magnet width (mm): 30 ●Magnet depth (mm): 34 ●Magnet height (mm): 35 ●Main column mounting screw: M5 x P0.8 ●Main column: φ7 x 54mm ●Support: None ●Measuring instrument mounting: 6mm hole ●Magnet section can be turned ON/OFF
