カネテック(株)

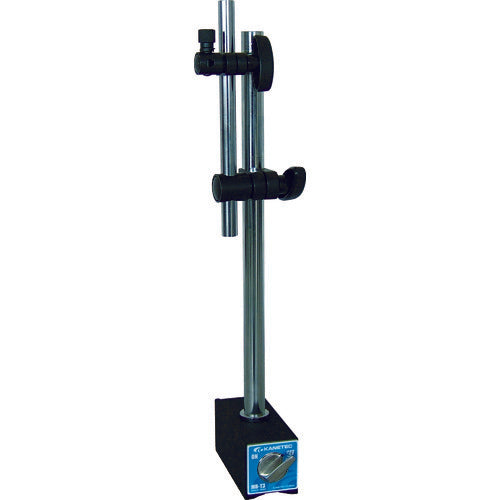

KANETEC Magnetic Base MB-T3 1 piece
KANETEC Magnetic Base MB-T3 1 piece
Regular price
¥26,189
Regular price
Sale price
¥26,189
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
Catalog number: MB-T3 Features: ●Long main pillar and large magnet base. ●Strong magnet and sturdy clamp mechanism enable stable and highly accurate measurement work. Applications: ●Used as a measuring instrument holder when measuring with dial gauge type measuring instruments. Specifications: ●Adhesive force (N): 1300 ●Magnet width (mm): 50 ●Magnet depth (mm): 117 ●Magnet height (mm): 55 ●Main pillar mounting screw: M10 x P1.25 (upper screw) / M20 x P1.5 (lower screw) ●Main pillar: φ20 x 355mm ●Support: φ14 x 200mm ●Measuring instrument mounting: 6.6mm and 8.1mm holes, with lugs
