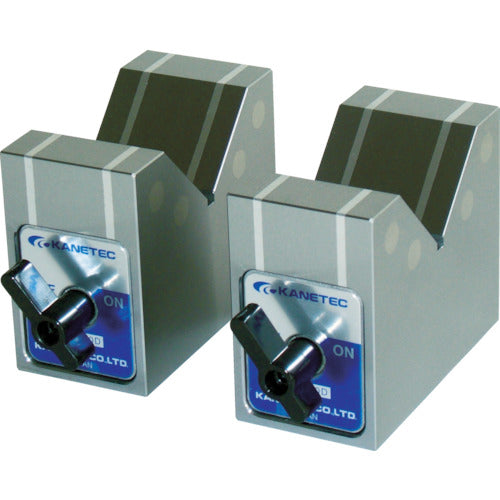

KANETEC Magnet V Block KMV-125D 1 set

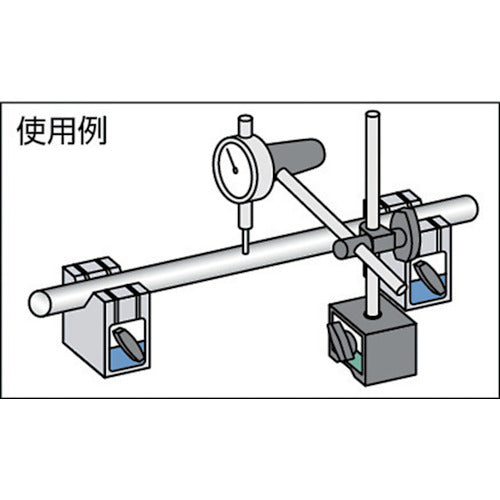

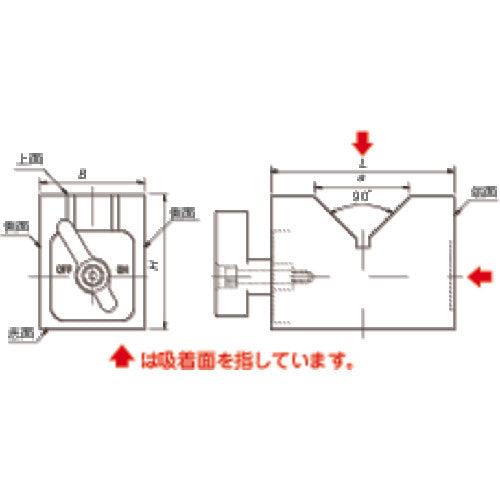

Catalog number: KMV-125D Features: ●Handle can be fixed or removed. ●V-groove mechanism that can hold both curved and flat surfaces. ●Also supports high-precision finishing. ●Waterproof and oil-resistant structure. ●Special structure generates suction power on three surfaces: top, bottom, and end. ●Attachment and removal can be easily performed by operating the handle. Applications: ●As a holding tool for precision work such as measurement, drilling, and marking. ●Used to fix irregular objects during light cutting such as grinding, drilling, and tapping. Specifications: ●Width (mm): 50 ●Depth (mm): 150 ●Height (mm): 100 ●Suction surface: Top surface (V surface) and back surface (end surface) ●Suction force (N): 230 ●Usable diameter (φ): 8 to 125 ●Magnet switch lever position: Front Note: ●Suction force depends on the V surface and φ20 round steel.
