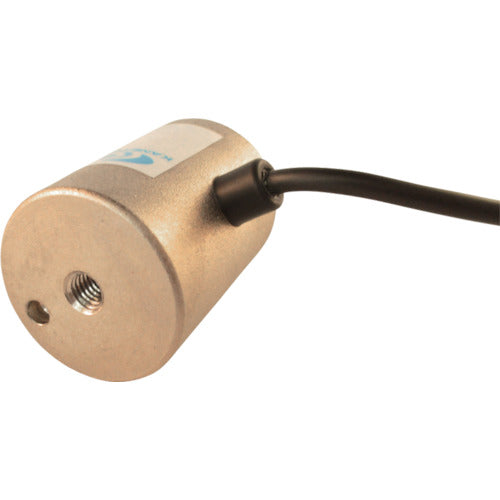

KANETEC Circular permanent magnet holder Diameter 70mm x Height 60mm KEP-7C 1 unit

Catalogue number: KEP-7C Features: ●No falling accidents due to power outages, and no heat generation, making it suitable for long-term adhesion. ●An electromagnetic release type in which the magnetic force is turned off only when electricity is applied. The magnetic force is always on. ●No need to worry about falling due to power outages, or heat generation due to constant power application. Applications: ●Wide range of applications, from various automated equipment to the handles of industrial robots. ●The magnetic force is turned off only when electricity is applied. Can be used as a safety measure during power outages without an uninterruptible power supply. Specifications: ● Adhesive force (N): 880 ● Height (mm): 60 ● Diameter (mm): 70 ● Voltage (V): DC24 ● Current (A): 0.50 ● Power cord length (m): 0.3 ● Compatible rectifier: KR-T101A-6/24 RH-M303A-6/24/-C1/-C2 ● Dimensions (mm): φ70×60 ● Usage rate: 10% ED ● Power cord length: 0.3m ● Back center screw hole: M10×1.50 depth 12mm ● Usage rate: 10% ED
