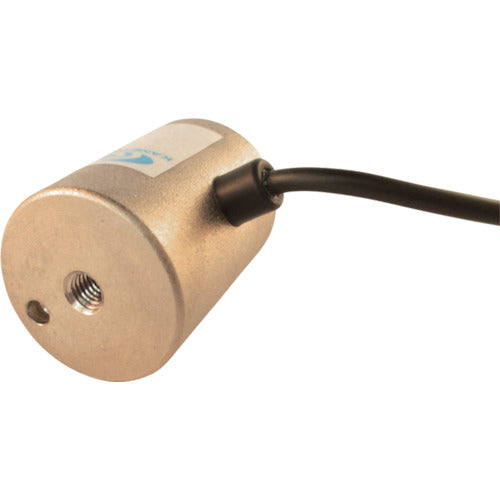

KANETEC Circular permanent magnet holder Diameter 90mm x Height 60mm KEP-9C 1 unit

Catalogue number: KEP-9C Features: ●No falling accidents due to power outages, and no heat generation, making it suitable for long-term adhesion. ●An electromagnetic release type where the magnetic force is turned off only when electricity is applied. The magnetic force is always on. ●No need to worry about falling due to power outages, or heat generation due to constant power application. Applications: ●Wide range of applications, from various automated equipment to the handles of industrial robots. ●The magnetic force is turned off only when electricity is applied. Can be used as a safety measure during power outages without an uninterruptible power supply. Specifications: Adhesive force (N): 1470 Height (mm): 60 Diameter (mm): 90 Voltage (V): DC24 Current (A): 0.45 Power cord length (m): 0.3 Compatible rectifier: KR-T101A-6/24 RH-M303A-6/24/-C1/-C2 Dimensions (mm): φ90×60 Usage rate: 10% ED Power cord length: 0.3m Back center screw hole: M10×1.50 Depth 12mm Usage rate: 10% ED
