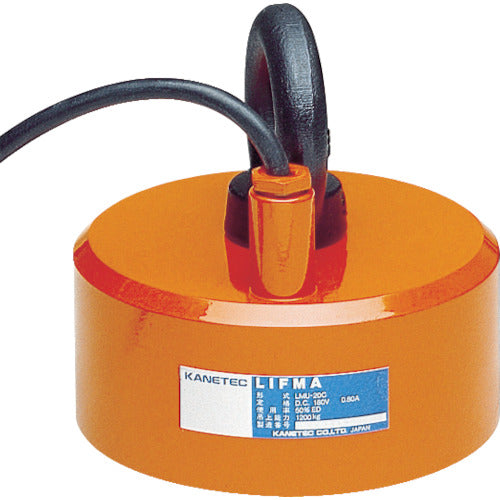

KANETEC small electromagnetic lifter LMU-15D 1 unit

Catalog number: LMU-15D Features: ●Attachment and detachment can be electrically controlled from a remote location. ●Powerful electromagnet despite its small size. ●Powerful electromagnet despite its small size. ●Flexible use from transporting small materials by itself to transporting large workpieces by combining multiple units. Applications: ●An electromagnetic suction device that functions as the lifting part of a crane or hoist for transporting steel materials in warehouses and work sites, or for raising and lowering workpieces onto machine tools. ●For transporting heavy objects such as steel plates and iron products with a flat suction surface that can be fully suctioned. Specifications: ●Lifting capacity of steel plates (kg): 600 ●Diameter (mm): 156 ●Height (mm): 70 ●Inner diameter of lifting ring (mm): 40 ●Rated voltage (V): DC180V ●Rated voltage: DC180V ●Cable length: 2m Caution: ●A rectifier (sold separately) is required when using this product. ●The lifting capacity is displayed as 1/2 of the maximum suction force. ●The usage rate is 50%ED (5 minutes of power on/5 minutes off).
