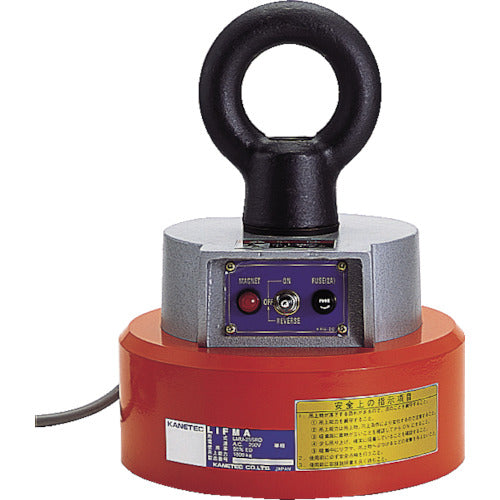

KANETEC Small Electromagnetic Lifter (Built-in Rectifier LMU-15SRD 1 unit

Catalog number: LMU-15SRD Features: ● Rectifier is built-in, so no separate rectifier is required. ● Equipped with a reverse excitation switch, so it is easy to release the lifted object. ● Powerful electromagnet despite its small size. ● Can be used flexibly from transporting small materials by using it alone to transporting large workpieces by combining multiple units. Applications: ● For loading and unloading workpieces on the processing table of machine tools, and moving small steel materials and steel plates. ● For transporting heavy objects such as steel plates and iron products with a flat suction surface that can be fully suctioned. Specifications: ● Lifting capacity of steel plates (kg): 600 ● Diameter (mm): 156 ● Height (mm): 142 ● Inner diameter of lifting ring (mm): 40 ● Input voltage (V): Single-phase AC200 ● Lifting part height (mm): 212 ● Power consumption (W): 110 ● Cable length: 5m ● Rectifier built-in Note: ● The electrical part of LMU-10/15SRD overhangs from the magnet part. *The lifting capacity is displayed as half the maximum suction force. *The usage rate is 50%ED (5 minutes power on/5 minutes off).
