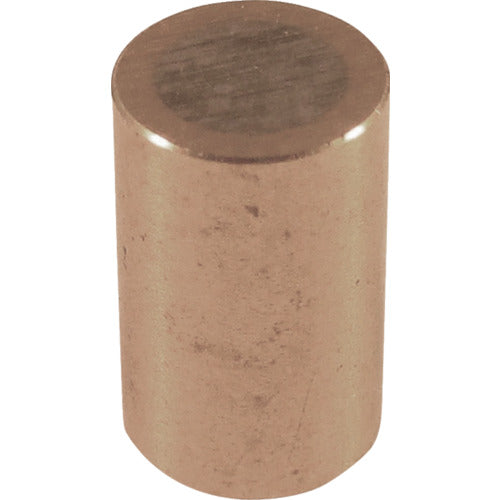

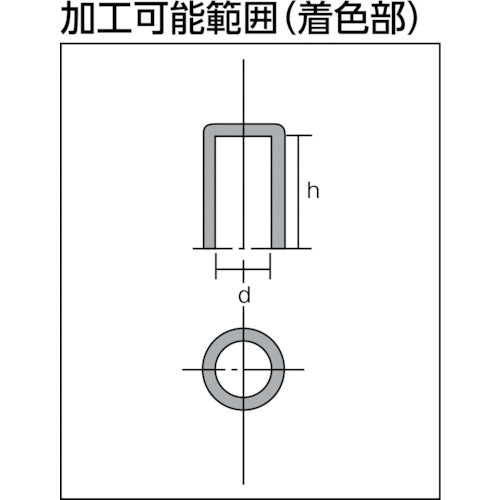

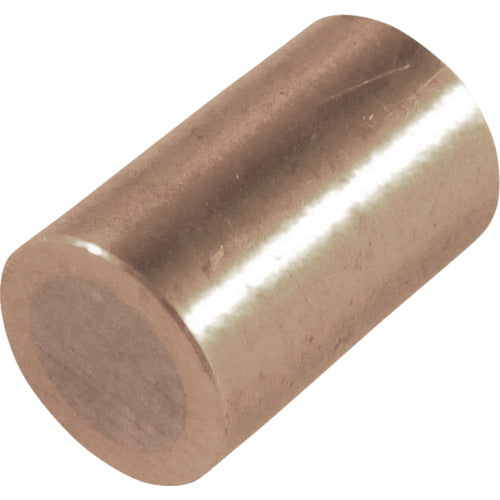

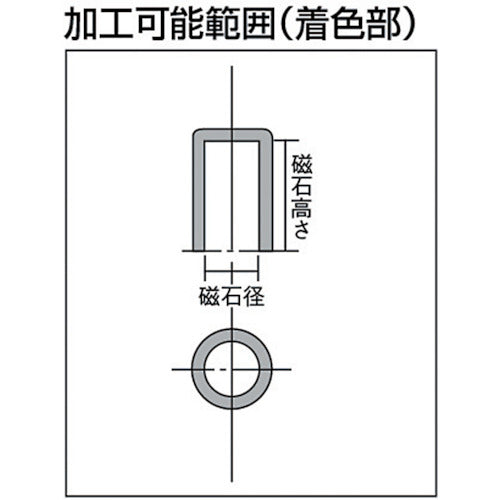

Catalog number: KM-001 Features: ●Since it uses an alnico magnet, it has the best temperature characteristics, and the adhesive force maintains 85% or more of its adhesive force even at 350℃, assuming that 20℃ is 100. ●It can be embedded in a mold, etc. ●It is a permanent magnet with a wide range of applications, with a structure that efficiently generates magnetic force. ●Screw holes can be drilled on the back. ●The surface is plated. Applications: ●For holding drawings, rulers, paper molds, etc. ●For holding workpieces during wire cutting work. ●Can be used as a clamp or holder for holding drawings, rulers, etc., or for attaching to tools and other machinery and equipment. Specifications: ●Adhesive force (N): 8.0 ●Outer diameter (mm): 10 ●Height (mm): 15 ●d (mm): 9.5 ●h (mm): 12 ●Maximum operating temperature (when used for a short time): 400℃ ●Circular type Material/Finish: ●Magnet: Alnico magnet
