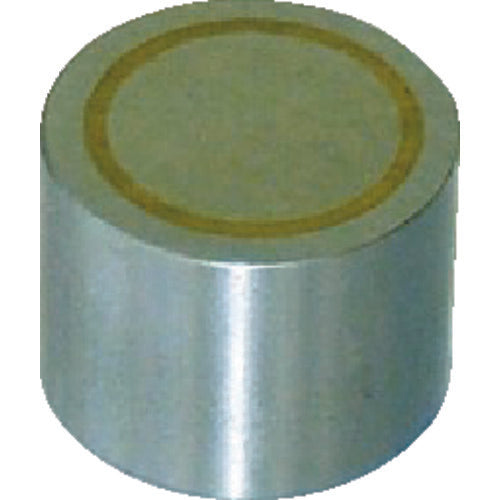

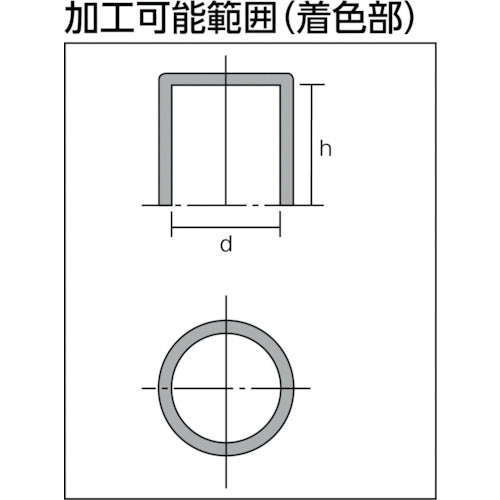

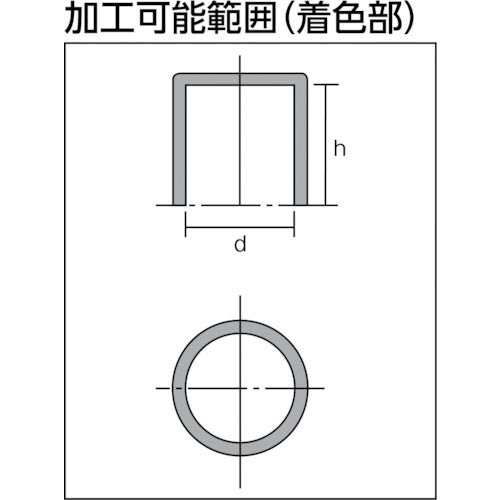

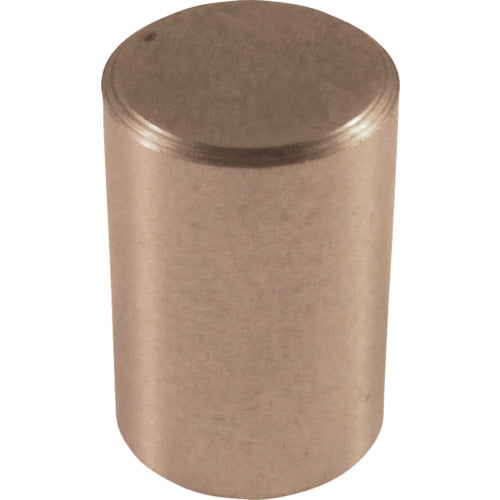

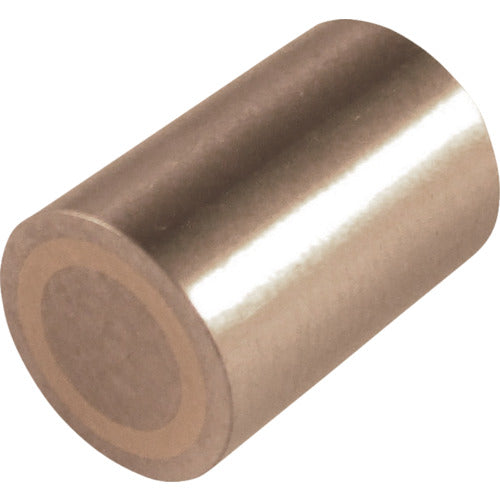

Catalog number: KM-H002 Features: ●Since it uses an alnico magnet, it has the best temperature characteristics, and the adhesive force maintains 85% or more of its adhesive force even at 350℃, assuming that 20℃ is 100. ●It can be embedded in a mold, etc. ●It is a permanent magnet with a wide range of applications, with a structure that efficiently generates magnetic force. Applications: ●For holding drawings, rulers, paper molds, etc. ●It can be used to hold drawings, rulers, etc., and as a clamp or holder attached to tools and other machinery and equipment. ●It can also be embedded in a press mold. Specifications: ●Adhesive force (N): 40 ●Outer diameter (mm): 20 ●Height (mm): 15 ●d (mm): 18.0 ●h (mm): 12 ●Maximum operating temperature (when used for a short time): 400℃ ●Circular type ●Outer diameter h tolerance Material/Finish: ●Magnet: Alnico magnet
