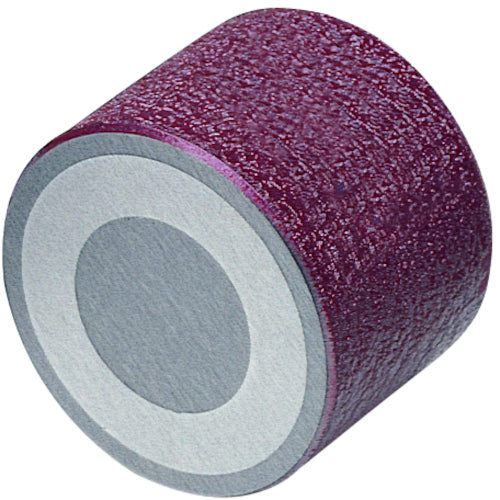

KANETEC permanent magnet holder, neodymium magnet, circular, with screw hole, outer diameter 40 mm, KM-04C, 1 piece

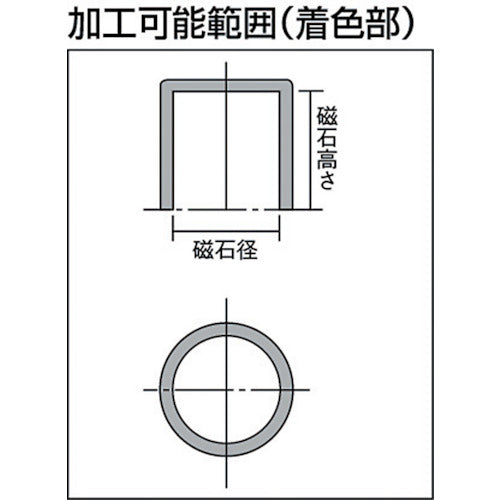

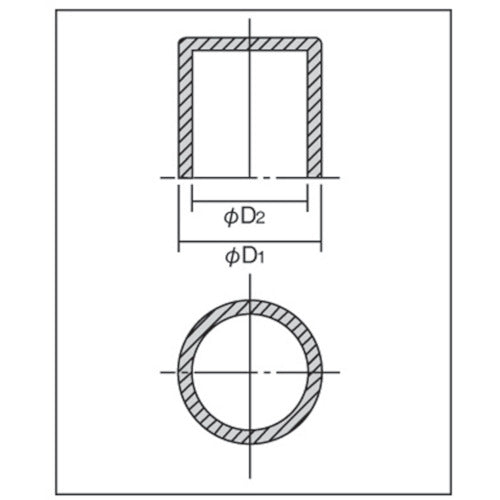

Catalog number: KM-04C Features: ● One-sided adhesion with concentrated magnetic force on the ring-shaped patterned surface, small but powerful magnetic force. ● The type with mounting screws (opposite the adhesion surface) can be widely used by attaching it to jigs, etc. ● Can be embedded in molds, etc. ● The adhesion force is about 85% at 50°C and 70% at 100°C, assuming 20°C is 100. ● A permanent magnet with a structure that efficiently generates magnetic force and a wide range of applications. ● Screw processing is applied to the back. ● Surface is painted. Applications: ● For holding drawings, rulers, paper molds, etc. ● For holding workpieces during wire cutting work. ● Can be used as a clamp or holder for holding drawings, rulers, etc., or for attaching to tools and other machinery and equipment. Specifications: Adhesive force (N): 300; Outer diameter (mm): 40; Height (mm): 30; Mounting screw: M8 x 1.25; d (mm): 36; h (mm): 20; Maximum operating temperature (continuous use): 100°C Material/Finish: Magnet: Neodymium magnet
