KANETEC Permanent Lifma PL type PL-20B 1 unit

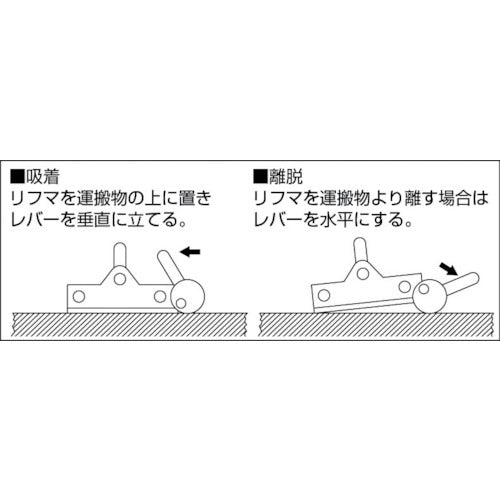

Catalog number: PL-20B Features: ●Permanent magnet type, no power supply required. ●Easy attachment and detachment due to cam system. ●Easy attachment and detachment of workpieces with tube system. Applications: ●For transporting materials such as black iron plates and flat iron products, lifting and transporting semi-finished products with flat surfaces such as machine parts, press dies, and dies for plastic molding. ●Suitable for transporting flat iron products. Specifications: ●Lifting capacity steel plate (kg): 200 ●Width (mm): 122 ●Depth (mm): 255 ●Height (mm): 150 ●Inner diameter of lifting ring (mm): 40 Caution: ●Sufficient magnetic force may not be obtained depending on the shape, material, thickness, surface roughness, gap, and usage method of the material. ●Do not use for workpieces that are too small in width or length to be operated with the cam. ●The surface of the workpiece may be scratched by the cam operation for attachment and detachment. ●Use your foot to operate the ON/OFF switching cam.
