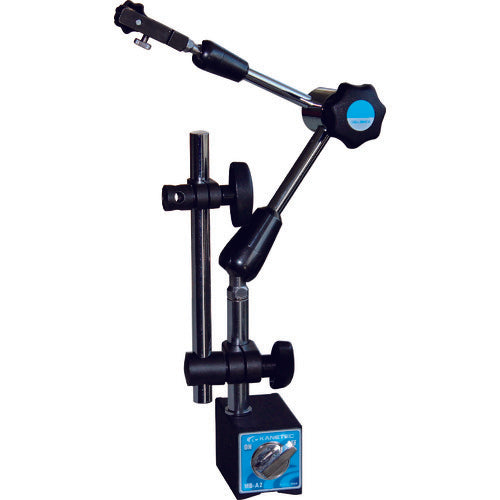

KANETEC 2-arm magnetic base MB-A2 1 unit

Catalog number: MB-A2 Features: ●Equipped with two arms per base, so it does not take up much space when measuring two points simultaneously. ●Mounting holes are also provided on the side of the base, making it suitable for a variety of measurements. ●This product is designed to make measurements and sensor setting easier by equipping one base with two arms with different locking mechanisms. Specifications: ●Adhesive force (N): 1000 ●Magnet width (mm): 50 ●Magnet depth (mm): 73 ●Magnet height (mm): 55 ●Arm length (mm): 429/200 ●Arm mounting screw: M8 ●Measuring instrument mounting hole: 6/8 ●Main pillar: φ16×87mm ●Support: φ14×200mm ●Measuring instrument mounting (support side): 6.6mm and 8.1mm holes, with lugs ●Measuring instrument mounting (mechanical lock arm side): 6mm and 8mm holes, with dovetail grooves
