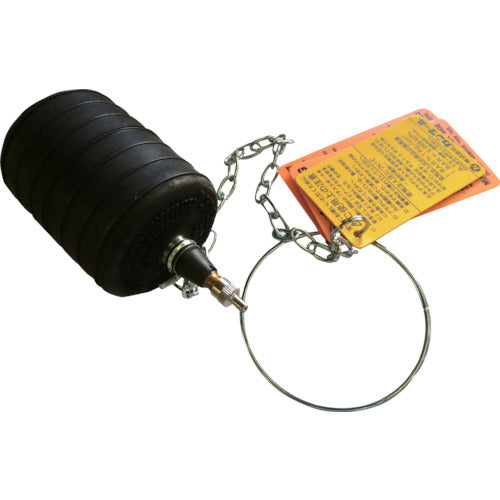

KANTOOL Pipe Water Stopper Supplies Single Size Test Ball 75mm 270-032 1 pc
KANTOOL Pipe Water Stopper Supplies Single Size Test Ball 75mm 270-032 1 pc
Regular price
¥11,088
Regular price
Sale price
¥11,088
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
Catalogue number: 270-032 Features: ● Can be inflated with air pressure to stop water in pipes. ● Can be used with an SS pump and air hose. Applications: ● For full water/water injection testing of indoor drainage pipes, and general water stoppage during work. Specifications: ● Nominal diameter (mm): 75 ● Length (mm): 132 ● Minimum to maximum pipe diameter (mm): 71 to 82 ● Maximum allowable back pressure (MPa): 0.09 ● Maximum allowable back pressure air (MPa): 0.09 ● Maximum allowable back pressure head (m): 9 ● Diameter (mm): 68 ● Plug injection pressure: 0.21 to 0.28 MPa ● Single size
