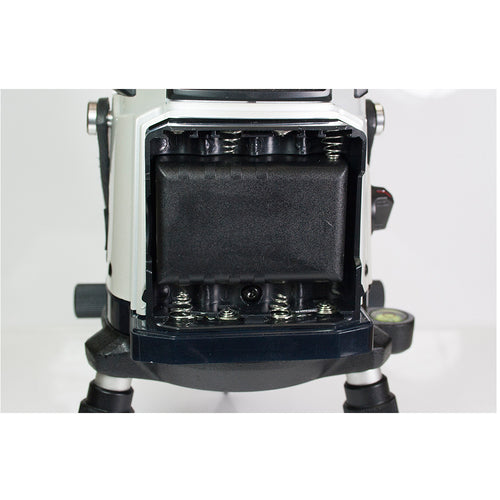

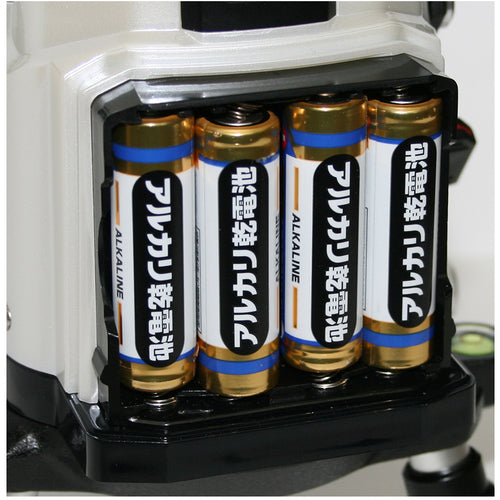

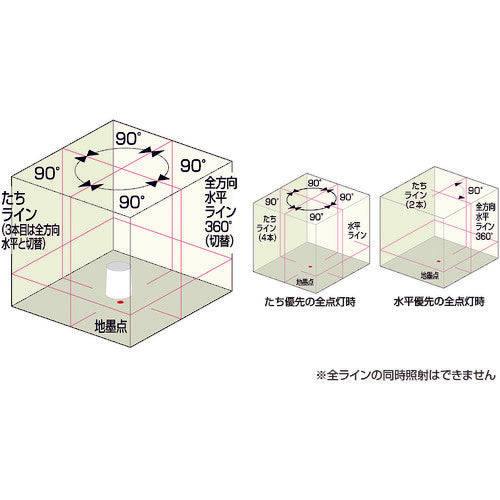

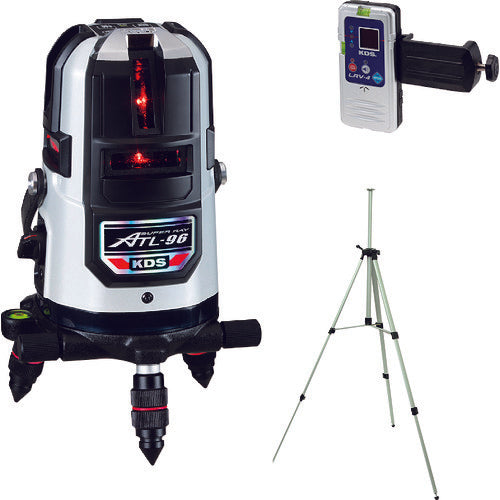

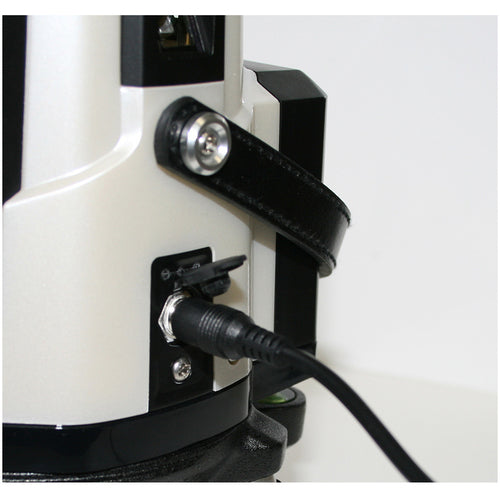

Catalog number: ATL-96RSA Features: ● Ultra-high brightness type that is easy to see even in bright places. ● Equipped with a fixed line mode that allows the laser to be emitted even when tilted. ● 3-way power source that can use lithium-ion rechargeable batteries, alkaline batteries, or AC power. ● Comes with one-year theft and fire compensation. Applications: ● For setting and checking horizontal and vertical standards. ● For positioning partitions. ● For installing machines, etc. Specifications: ● Height (mm): 206 ● Width (mm): 122 ● Precision: ±1mm/10m ● Automatic correction range: ±2.5° ● Power source: Lithium-ion rechargeable battery, alkaline battery, AC power source ● Protection class: IP54 ● Light source: Visible light semiconductor laser ● Light output (mW): 1 or less ● Wavelength (nm): Line: 635, Ground mark: 650 ● Laser safety standard: Class 2 (JIS C6802:2014)●Braking method: Magnetic braking method●Line width (mm): Approximately 2/5m●Right angle accuracy: 90°±0.012°●Color: White●Width (mm): 122●Depth (mm): 115●Height (mm): 206●Tripod mounting part: 5/8 inch●Light receiving accuracy: ±1mm●Operating temperature range (℃): -10℃ to +40℃●Battery life: Dry battery: Approximately 4 hours, Rechargeable battery: Approximately 7 hours●Power source (V): Lithium-ion rechargeable battery/Alkaline dry battery/AC power source●Vertical 4-direction square, horizontal all-around, ground mark Material/Finish:●Main body cover: ABS resin●Base: Aluminum Set contents/Accessories:●Main body: ATL-96●Receiver: LRV-4●Tripod: LEC4M●Lithium-ion rechargeable battery●Alkaline dry battery x 4●Charger●Laser goggles
