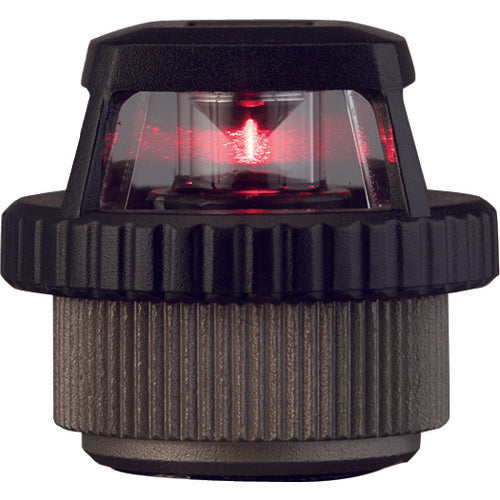

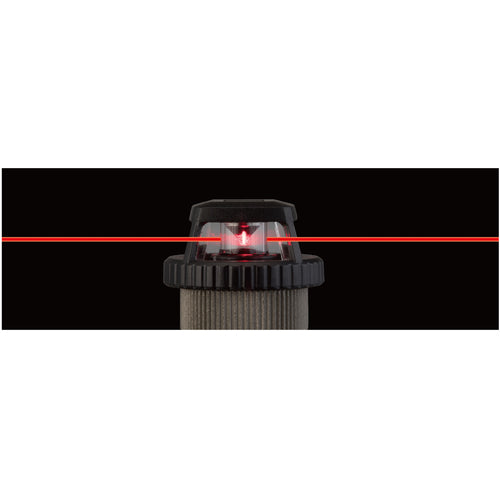

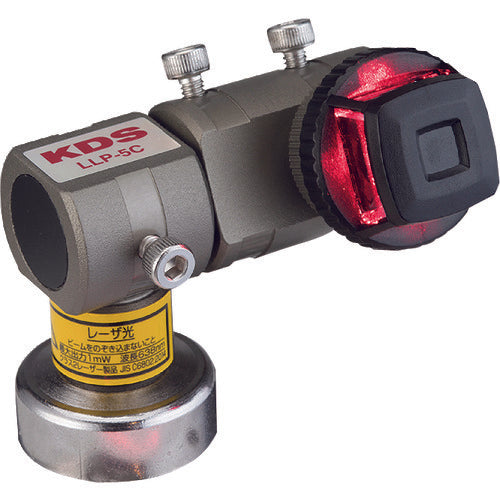

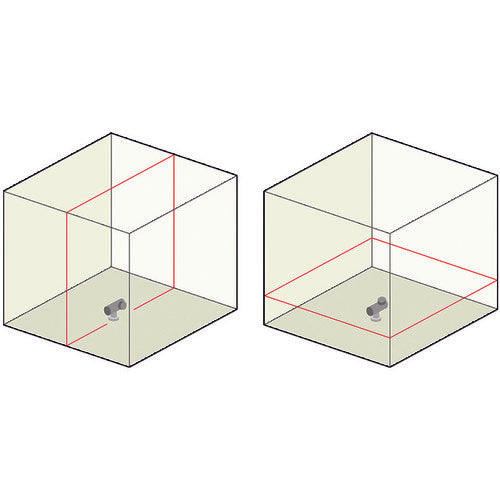

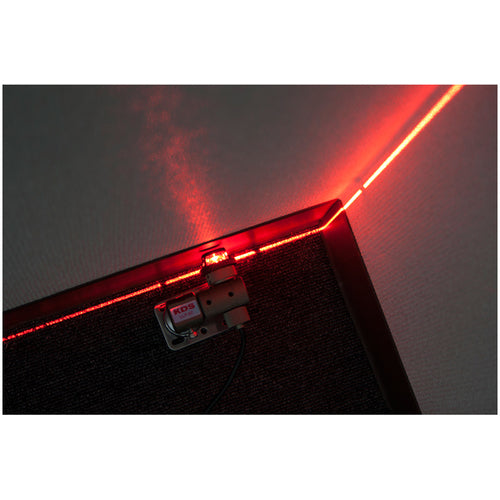

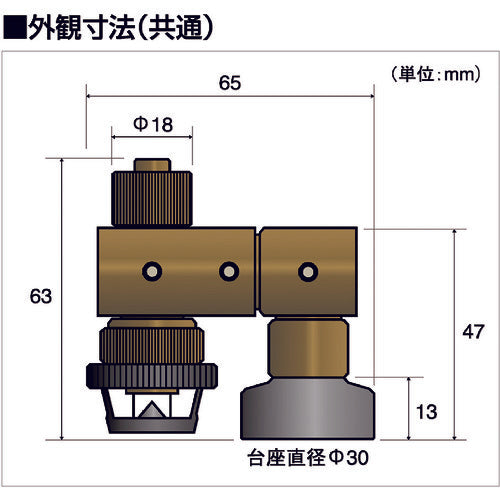

Catalog number: LLP-5C Features: ●Uses a cone mirror that can irradiate 360° with one light source. ●Clearly displays laser guidelines in places where marking is not possible. ●Has three rotating parts, so lines can be projected in any direction, up and down, left and right, 360°. Applications: ●For laser irradiation near walls (can irradiate approximately 5 mm from the wall). ●As a mark when cutting plasterboard, wood, etc. ●As a positioning guide when aligning materials. ●To indicate the position when installing machines. ●As a line when installing at an angle. Specifications: ● Laser color: Red ● Beam angle (°): 360 ● Size (mm): 60 x 40 x 61 ● Light source: Visible light semiconductor laser ● Light output: 1mW or less ● Power supply (V): AC100 ● Line indication accuracy: ±1mm/5m (linearity) ● Operating temperature range (℃): -5℃ to +45℃ ● Laser safety standard: Class 2 (JIS C6802:2014) ● Protection class: IP54 (excluding AC) ● Accuracy: ±1mm/5m (linearity) ● Wavelength: 638nm ● Power supply: AC adapter ● Height (mm): 63 ● Type: 638nm red laser ● Width (mm): 65 ● Line width (mm): Approximately 2mm/5m ● Light output: 1mW or less Material/Finish: ● Body: Cast iron Set contents/Accessories: ● AC adapter ● Mounting plate ● Hexagonal wrench Caution: ● Laser class 2 (Do not look into the beam)
