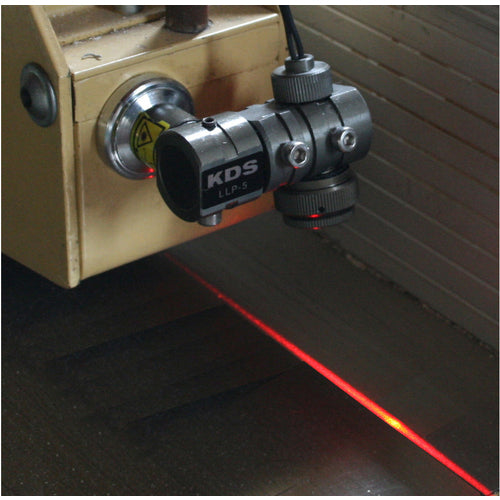

KDS Line Laser Projector 5 LLP-5 1 piece

Catalogue number: LLP-5 Features: ● Laser guidelines are clearly displayed in places where marking is not possible. ● With three rotating parts, lines can be projected in any direction, up and down, left and right, 360 degrees. ● The base is magnetic, making it easy to install. Uses: ● As a mark when cutting plasterboard, wood, etc. ● As a positioning guide when lining up materials. ● To indicate the position when setting up machines. ● As a line for inclined (diagonal) installation. Specifications: ● Laser color: Red ● Beam angle (°): 120 ● Size (mm): 60 x 40 x 55 ● Light source: Visible light semiconductor laser ● Light output: 1mW or less ● Power supply (V): AC100 ● Line indication accuracy: ±1mm/5m (linearity) ● Operating temperature range (℃): -5℃ to +45℃ ● Laser safety standard: Class 2 (JIS C6802:2005) ● Protection class: IP54 (excluding AC) ● Accuracy: ±1mm/5m (linearity) ● Wavelength: 635nm ● Adjustment range: 360° fine adjustment possible up and down and left and right all around ● Working range (m): Maximum 10 (varies depending on the work environment) ● Operation time: Approximately 5000 hours ● Operating temperature range: -5℃ to +45℃ ● Light output: 1mW or less Set contents/accessories: ● AC adapter ● Mounting plate ● Hexagonal wrench Caution: ● Laser class 2 (do not look into the beam)
