KDS ATL-66RG Tracking Base Set ATL-66RG TRC SET 1 S

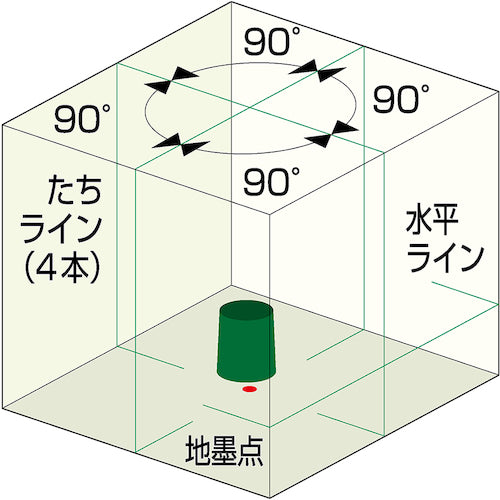

Catalog number: ATL-66RG TRC SET Features: ● Comes with a tracking base set that allows one person to align the markings on the ground. ● Uses a real green laser diode with excellent temperature characteristics. ● Equipped with a line fixing mode that allows the laser to be emitted even when tilted. Tilt adjustment base: TAB-1 (sold separately) ● 3-way power supply that can use lithium-ion rechargeable batteries, alkaline batteries, or AC power. ● Laser can be emitted in 4 vertical directions and 1 horizontal direction. ● Simply place the dedicated receiver and press the tracking button. ● Comes with a magnetic adapter that is easy to attach and detach. Applications: ● For positioning partitions. ● For centering the ceiling. ● For installing machines, etc. Specifications: ● Height (mm): 195 ● Width (mm): 122 ● Precision: ±1mm/10m ● Automatic correction range: Approximately ±2.5° ● Power source: Lithium-ion rechargeable battery, alkaline battery, AC power supply (included) ● Protection class: IP54 ● Light source: Visible semiconductor laser ● Light output (mW): 1 or less ● Wavelength (nm): Line: 515, ground mark 650 ● Laser safety standard: Class 2 (JIS C6802:2014)●Braking method: Magnetic braking method●Line width (mm): Approximately 2/5m●Right angle accuracy: 90°±0.012°●Color: Green●Width (mm): 122●Depth (mm): 115●Height (mm): 195●Tripod mounting part: 5/8 inch●Light receiving accuracy: ±1.5mm●Operating temperature range (℃): -10℃ to +40℃●Battery life: Dry battery: Approximately 2 hours, Rechargeable battery: Approximately 4.5 hours●Power supply (V): Lithium-ion rechargeable battery, alkaline dry battery, AC power supply (included)●4 vertical squares, 1 horizontal direction, ground mark●Laser safety standard: Class 2 (JIS C6802:2014)●Container protection rating: IP54 Material/Finish:●Body cover: ABS resin●Base: Aluminum Set contents/accessories: ● Laser level: ATL-66RG ● Receiver: LRV-5RGT ● Tracking base: TRC-1 ● Lithium-ion rechargeable battery ● Charger ● AC adapter ● 4 AA alkaline batteries ● 7 AAA alkaline batteries ● Laser goggles
