KDS ATL-96RG Tracking Base Set ATL-96RG TRC SET 1 unit

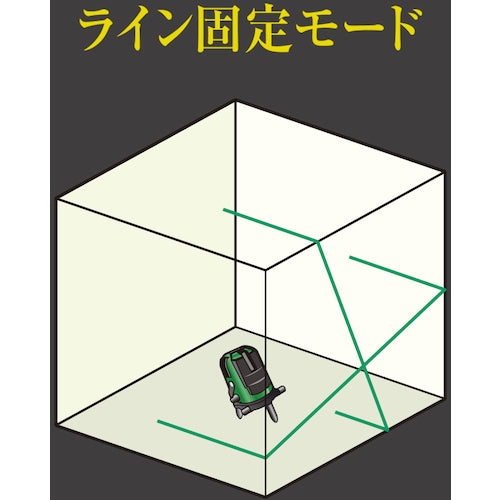

Catalog number: ATL-96RG TRC SET Features: ●Uses a real green laser diode with excellent temperature characteristics. ●Equipped with a line fixed mode that allows the laser to be emitted even when tilted. Tilt adjustment base: TAB-1 (sold separately) ●3-way power supply that can use lithium-ion rechargeable batteries, alkaline batteries, or AC power. ●Laser can be emitted in four vertical directions and all around the horizontal. ●Allows one person to easily align the ground line. ●Just place the dedicated receiver and press the tracking button. ●Comes with a magnetic adapter that is easy to attach and detach. Uses: ●For positioning partitions. ●For centering the ceiling. ●For installing machines, etc. Specifications: ● Height (mm): 206 ● Width (mm): 122 ● Precision: ±1mm/10m ● Automatic correction range: Approximately ±2.5° ● Power source: Lithium-ion rechargeable battery, alkaline battery, AC power source ● Protection rating: IP54 ● Irradiation line: 4-way rectangular, horizontal all-around ● Light source: Visible semiconductor laser ● Light output (mW): 1 or less ● Wavelength (nm): Line: 515, ground mark: 650 ● Laser safety standard: Class 2 (JIS C6802:2014)●Braking method: Magnetic braking method●Line width (mm): Approximately 2/5m●Right angle accuracy: 90°±0.012°●Color: Green●Width (mm): 122●Depth (mm): 115●Height (mm): 206●Tripod mounting part: 5/8 inch●Light receiving accuracy: ±1.5mm●Operating temperature range (℃): -10 to +40●Battery life: Alkaline battery: Approximately 1.5 hours, Rechargeable battery: Approximately 3.5 hours●Wavelength: Line: 515nm (green) Ground line: 650nm (red)●Power supply (V): Lithium-ion rechargeable battery, alkaline battery, AC power supply●Vertical 4-direction square, horizontal all-around, ground line●Laser safety standard: Class 2 (JIS C6802:2014)●Container protection rating: IP54 Material/Finish:●Body cover: ABS resin●Base: Aluminum Set contents/accessories: ●Laser level: ATL-96RG ●Receiver: LRV-5RGT ●Tracking base: TRC-1 ●Lithium-ion rechargeable battery ●Charger ●4 x AA alkaline batteries ●7 x AAA alkaline batteries ●Laser goggles Note: ●It is not possible to illuminate all lines simultaneously.
