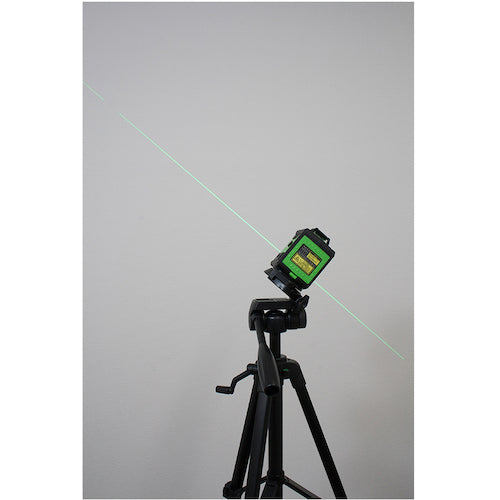

Catalog number: ATL-CX10RG Features: ● A compact laser that uses a cone prism to irradiate horizontally all around. ● Irradiates one vertical line horizontally 360°. ● Uses a real green laser diode with excellent temperature characteristics. ● Includes a fixed line mode that allows the laser to be tilted and irradiated. ● Two-way power supply: alkaline batteries and AC adapter (sold separately). Applications: ● For positioning partitions. ● For setting and checking horizontal and vertical standards. ● For machine installation, etc. Specifications: ● Height (mm): 100 ● Width (mm): 68 ● Precision: ±1.5mm/5m ● Automatic correction range: ±4° ● Power supply: 4 AA alkaline batteries (included) or AC adapter (sold separately) ● Protection rating: IP54 ● Light source: Visible semiconductor laser ● Light output (mW): 1 or less ● Wavelength (nm): 515 ● Laser safety standard: Class 2 (JIS C6802:2014) ● Braking method: Magnetic braking method ● Line width (mm): Approximately 2/5m ● Color: Green ● Width (mm): 68 ● Depth (mm): 91 ● Height (mm): 100 ● Tripod mounting part: 1/4 inch ● Operating temperature range (℃): -10℃ to +35℃ ● Battery life: Approximately 7 hours ● Power supply (V): 4 AA alkaline batteries (included) or AC adapter (sold separately) ● Vertical 1 direction, horizontal all around ● Laser safety standard: Class 2 (JIS C6802:2014) Continuous operation time: Approximately 7 hours Material/Finish: Body: ABS resin Set contents/Accessories: Laser goggles (GLG1) L-shaped target board 4 AA alkaline batteries Carrying bag
