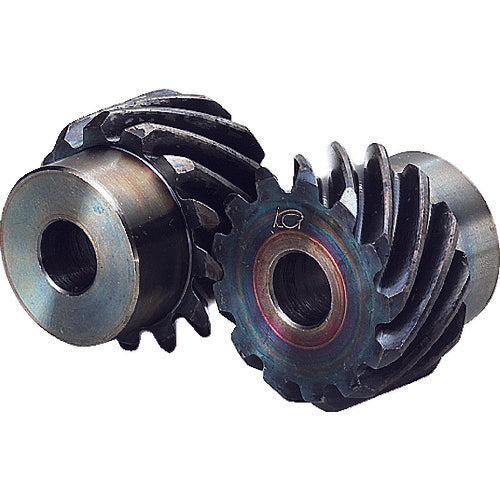

KG Helical Gear/Screw Gear Helical H1S 26L-B Module 1.0 Pressure angle 20 degrees (straight teeth) H1S 26L-B 1 pc

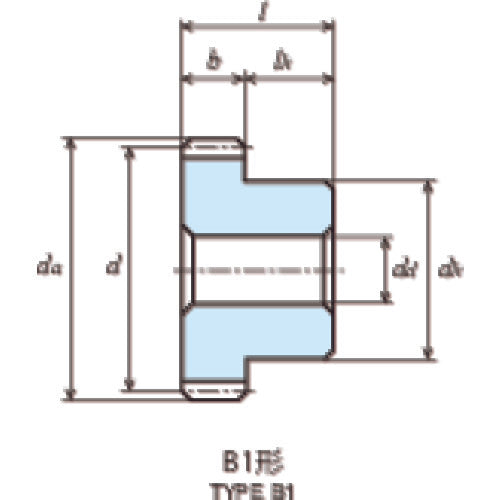

Catalog number: H1S 26L-B Features: ●The teeth are induction hardened to HRC47-53. Applications: ●Used for general industrial machinery, semiconductor manufacturing, food machinery, conveying machinery, etc. Specifications: ●Module: 1 ●Number of teeth: 26 ●Reference circle diameter (mm): φ36.77 ●Tooth width (mm): 12 ●Hole diameter (mm): φ10 ●Total length (mm): 22 ●Shape: B1 ●Tooth tip circle diameter (mm): φ38.8 ●Hub outer diameter (mm): φ32 ●Hub length (mm): 10 ●Twist direction: L ●Gear precision: JIS B 1702-1 (ISO) Grade 9 ●Tooth shape: Straight teeth ●Pressure angle: 20° ●Twist angle: 45° Material/Finish: ●S45C (Carbon steel for machine construction) Caution: ●If the mating gear is used in combination with a product from another company, there is a risk of malfunction. For other details, please refer to the precautions for using helical gears listed in the KG Gear Information section of the KG general catalogue.
