KG Worm Wheel G1D100-R1 Module 1.0 Polyacetal (white) without bush G1D100-R1 1 piece

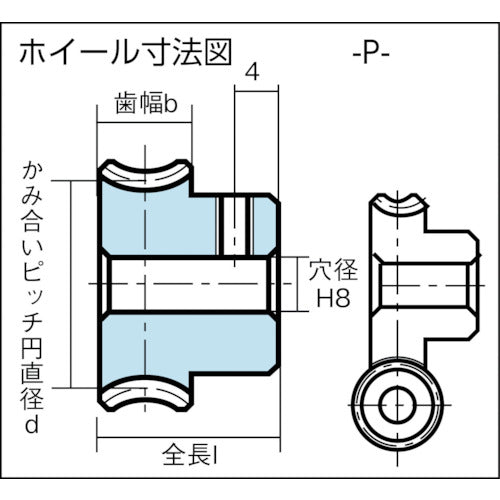

Catalog number: G1D100-R1 Features: ● Module 0.8, 1.0 worm wheel with a pressure angle of 20° (straight teeth). ● Threaded. Applications: ● For power transmission of misaligned shafts, general industrial machinery, medical equipment, food machinery, etc. Specifications: ●Key groove: No ●Module: 1 ●Tooth ratio: 1:100 ●Number of teeth: 100 ●Meshing pitch circle diameter (mm): φ100 ●Hole diameter (mm): φ10 ●Tooth form: Straight teeth ●Shape: 1B ●Tooth width (mm): 10 ●Tooth tip circle diameter (mm): φ103.5 ●Total length (mm): 18 ●Hub length (mm): 8 ●Hub outer diameter (mm): φ40 ●Throat diameter (mm): φ102 ●Worm twist direction and number of grooves (mm): R1 ●Worm twist direction and number of grooves: R1 ●Meshing center distance (mm): 58 ●Mounting screw M: - ●Mounting screw ls: - ●Pressure angle: 20° Material/Finish: ●Polyacetal (white) Caution: ●Please use a worm and worm wheel with the same twist direction and number of grooves.
