KG Worm Wheel G1DB20+R2 Module 1.0 Polyacetal (white) with brass bush (C3604B) G1DB20+R2 1 piece

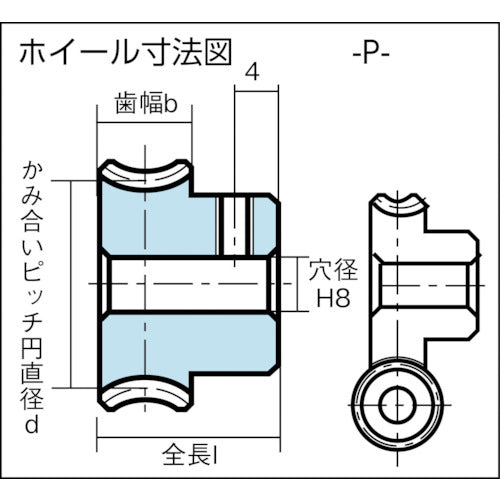

Catalog number: G1DB20+R2 Features: ● Module 0.8, 1.0 worm wheel with a pressure angle of 20° (straight teeth). ● Threaded. Applications: ● For power transmission of misaligned shafts, general industrial machinery, medical equipment, food machinery, etc. Specifications: ●Key groove: No ●Module: 1 ●Tooth ratio: 1:10 ●Number of teeth: 20 ●Meshing pitch circle diameter (mm): φ20 ●Hole diameter (mm): φ6 ●Tooth form: Straight teeth ●Shape: 0B ●Tooth width (mm): 8 ●Tooth tip circle diameter (mm): φ23 ●Total length (mm): 17 ●Hub length (mm): 9 ●Hub outer diameter (mm): φ16 ●Throat diameter (mm): φ22 ●Worm twist direction and number of grooves (mm): R2 ●Meshing centre distance (mm): 18 ●Worm twist direction and number of grooves: R2 ●Mounting screw M: - ●Mounting screw ls: - ●Pressure angle: 20° Material/Finish: ●Polyacetal (white with brass bushing) Caution: ●Please use a worm and worm wheel with the same twist direction and number of grooves.
