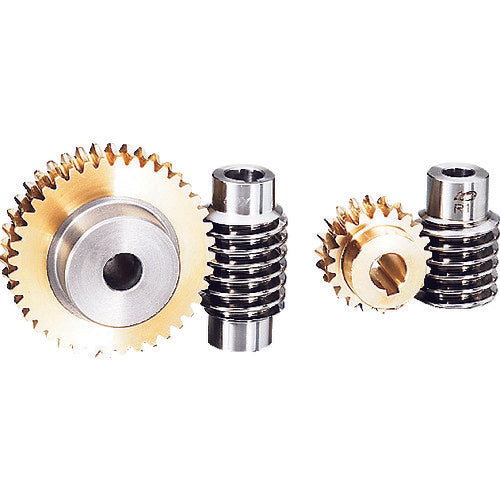

KG Worm Wheel G1.5A 30R2-E-15 G1.5A 30R2-E-15 1 piece

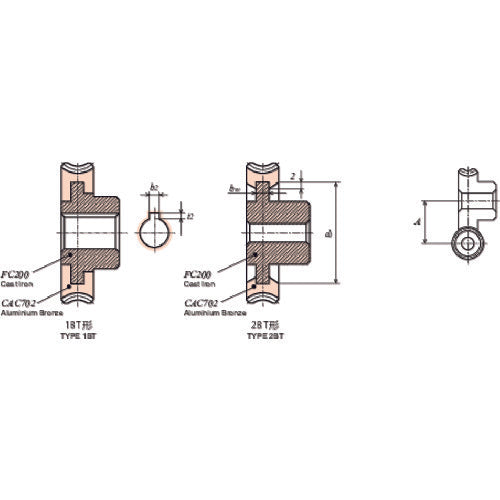

Catalog number: G1.5A 30R2-E-15 Features: ●Tooth profile: straight teeth, pressure angle: 20° worm wheel. Applications: ●General industrial machinery, medical equipment, food machinery, etc.性：35●軽断続切削まで対応 English: Specifications: ●Module: 1.5 ●Tooth ratio: 15 ●Number of teeth: 30 ●Meshing pitch circle diameter (mm): φ45 ●Hole diameter (mm): φ15 ●Tooth form: Straight teeth ●Shape: 1B ●Tooth width (mm): 15 ●Tooth tip circle diameter (mm): φ50.3 ●Total length (mm): 25 ●Hub length (mm): 10 ●Hub outer diameter (mm): φ30 ●Throat diameter (mm): φ48 ●Meshing center distance (mm): 35 ●Worm twist direction and number of grooves: R2 ●Worm twist direction and number of grooves (mm): R2 ●Twist direction: R ●Keyway b2 × t2 (mm): 5 × 2.3 ●Pressure angle: 20° Material/Finish: ●C6191BE aluminum bronze Set contents/Accessories: ●Key material Caution: ●In order to obtain ideal meshing, be sure to accurately adjust the squareness when assembling the worm and worm wheel. ●Since there is a large amount of friction on the tooth surfaces when the worm and worm wheel mesh, we recommend operating the product in a lubricant whenever possible. ●Use a worm and worm wheel with the same twist direction and number of threads. ●Design the worm shaft and worm wheel shaft to be sturdy, with bearings as close to the gears as possible to prevent bending. ●Please note that the axial thrust acting on the worm is quite large. For information on axial thrust, please refer to the KG Gear Information in the general catalog.
