KG Worm Wheel G80D20+R1 Module 0.8 Polyacetal (white) No bush G80D20+R1 1 piece

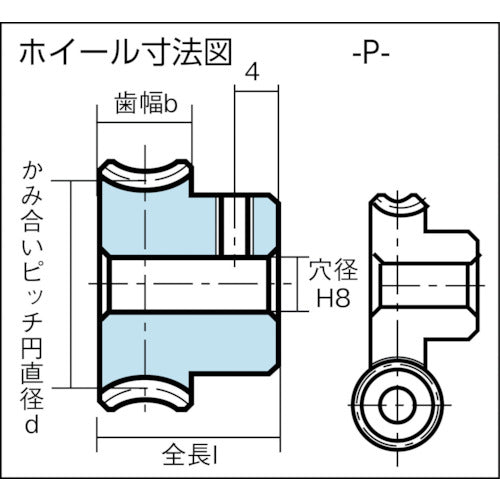

Catalog number: G80D20+R1 Features: ● Module 0.8, 1.0 worm wheel with a pressure angle of 20° (straight teeth). ● Threaded. Applications: ● For power transmission of misaligned shafts, general industrial machinery, medical equipment, food machinery, etc. Specifications: ●Key groove: No ●Module: 0.8 ●Tooth ratio: 1:20 ●Number of teeth: 20 ●Meshing pitch circle diameter (mm): φ16 ●Hole diameter (mm): φ5 ●Tooth form: Straight teeth ●Shape: 1B ●Tooth width (mm): 6 ●Tooth tip circle diameter (mm): φ18.1 ●Total length (mm): 12 ●Hub length (mm): 6 ●Hub outer diameter (mm): φ12 ●Throat diameter (mm): φ17.6 ●Mounting screw ls: 3 ●Mounting screw M: M3 ●Meshing center distance (mm): 13.2 ●Worm twist direction and number of grooves: R1 ●Worm twist direction and number of grooves (mm): R1 ●Pressure angle: 20° Material/Finish: ●Polyacetal (white) Caution: ●Please use a worm and worm wheel with the same twist direction and number of grooves.
