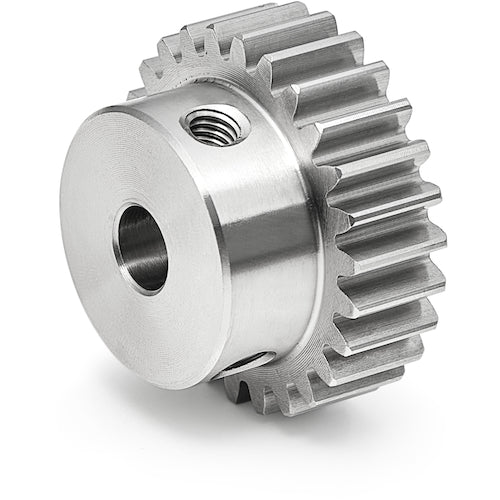

KG Stainless steel spur gear S1SU 80B*0610 Shape B1 Module 1 Number of teeth 80 Tooth width 6mm Hole diameter Φ10mm S1SU 80B*0610 1 piece

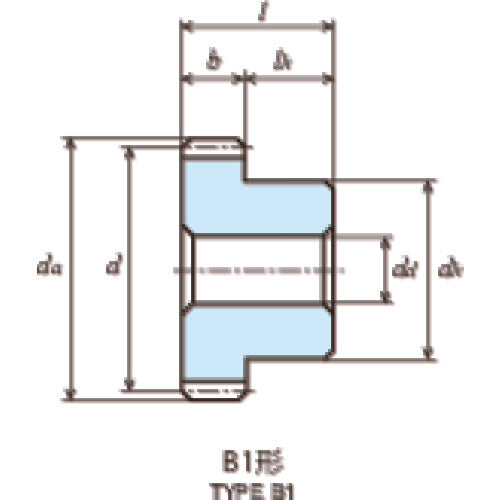

Catalog number: S1SU 80B*0610 Features: ● Small precision gear. Applications: ● Used for general industrial machinery, medical equipment, and food machinery. Specifications: ● Module: 1 ● Number of teeth: 80 ● Shape: B1 ● Reference circle diameter (mm): φ80 ● Tooth width (mm): 6 ● Hole diameter (mm): φ10 ● Tooth tip circle diameter: φ82 ● Total length (mm): 16 ● Hub outer diameter (mm): φ30 ● Tooth tip circle diameter (mm): φ82 ● Mounting screw M: 2-M5 ● Mounting screw ls: 5 ● Hub length (mm): 10 ● Gear precision: JIS B 1702-1 (ISO) Grade 9 ● Tooth shape: Straight teeth ● Pressure angle: 20° Material/Finish: ● SUS304 (stainless steel bar)
