KG Straight bevel gear B1S15*6 Module 1.0 Pressure angle 20 degrees Number of teeth 15 B1S15*6 1 piece

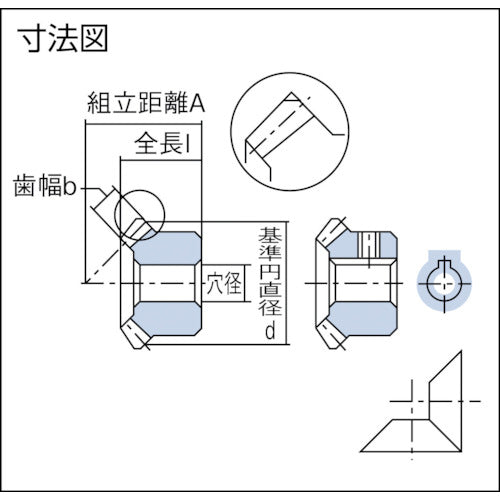

Catalog number: B1S15*6 Specifications: ●Tooth ratio: 3 ●Module: 1 ●Number of teeth: 15 ●Reference circle diameter (mm): φ15 ●Tooth width (mm): 6.7 ●Hole diameter (mm): φ6 ●Total length (mm): 15.16 ●Tooth tip circle diameter (mm): φ17.67 ●Assembly distance (mm): 31 ●Hub outer diameter (mm): φ13 ●Hub length (mm): 8.17 ●Mounting screw M: M4 ●Mounting screw ls: 4 ●Included screws (2 pieces): ○ ●Gear precision: JIS B 1704 Class 3 ●Pressure angle: 20° Material/Finish: ●Carbon steel for mechanical construction (S45C)
