KG Straight bevel gear B1SU20-6 Module 1.0 Pressure angle 20 degrees Number of teeth 20 B1SU20-6 1 piece

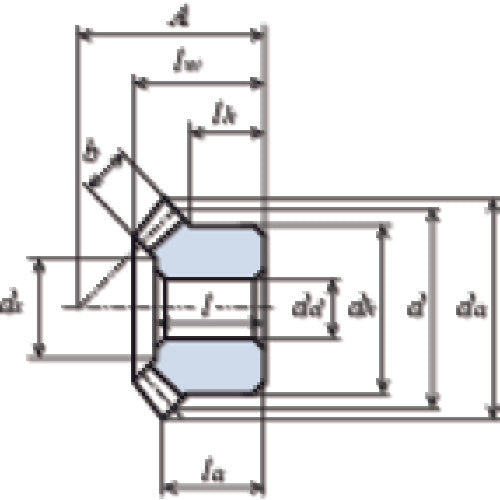

Catalog number: B1SU20-6 Features: ●Bevel gears that are easy to modify. Applications: ●Used in general industrial machinery, food machinery, medical equipment, etc. Specifications: ●Tooth ratio: 2 ●Module: 1 ●Number of teeth: 20 ●Reference circle diameter (mm): φ20 ●Tooth width (mm): 5.7 ●Hole diameter (mm): φ6 ●Total length (mm): 15.03 ●Tooth tip circle diameter (mm): φ21.79 ●Assembly distance (mm): 29.60 ●Hub outer diameter (mm): φ16 ●Hub length (mm): 8.6 ●Gear precision: JIS B 1704 (ISO) Class 4 ●Pressure angle: 20° Material/Finish: ●SUS304 (stainless steel bar) Caution: ●If the mating gear is used in combination with a product from a company other than ours, malfunctions may occur.
