KG Straight bevel gear B1SU40-8 Module 1.0 Pressure angle 20 degrees Number of teeth 40 B1SU40-8 1 piece

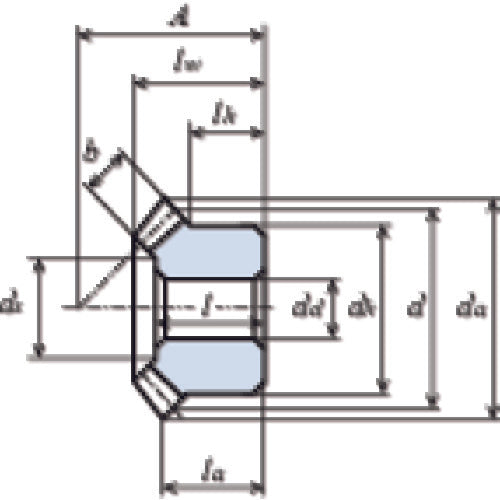

Catalog number: B1SU40-8 Features: ●Bevel gears that are easy to modify. Applications: ●Used in general industrial machinery, food machinery, medical equipment, etc. Specifications: ●Tooth ratio: 2 ●Module: 1 ●Number of teeth: 40 ●Reference circle diameter (mm): φ40 ●Tooth width (mm): 5.7 ●Hole diameter (mm): φ8 ●Total length (mm): 15.02 ●Tooth tip circle diameter (mm): φ40.89 ●Assembly distance (mm): 21.8 ●Hub outer diameter (mm): φ25 ●Hub length (mm): 8.0 ●Gear precision: JIS B 1704 (ISO) Class 4 ●Pressure angle: 20° Material/Finish: ●SUS304 (stainless steel bar) Caution: ●If the mating gear is used in combination with a product from another company, problems may occur.
