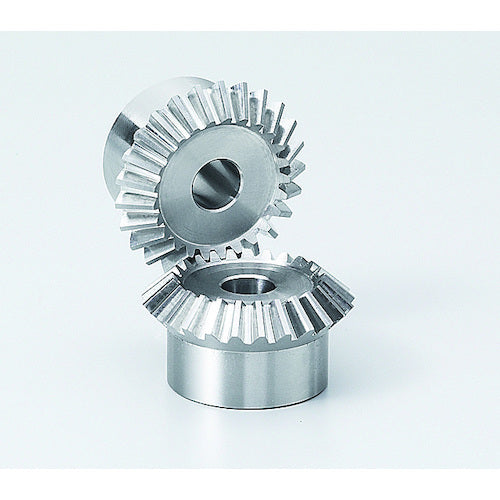

KG Straight Bevel Gear B1.5SU 18-8 B1.5SU 18-8 1 pc

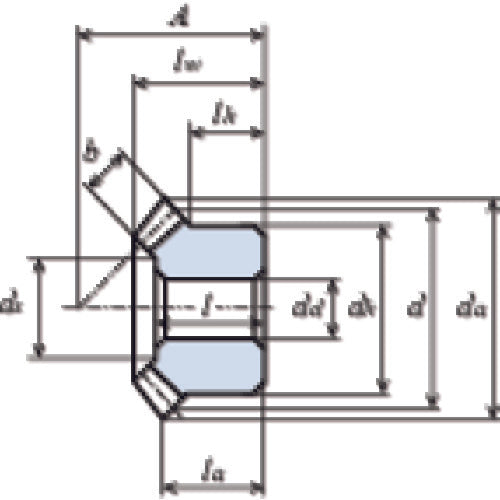

Catalog number: B1.5SU 18-8 Features: ●Bevel gears that are easy to modify. Applications: ●Used in general industrial machinery, food machinery, medical equipment, etc. Specifications: ●Tooth ratio: 2 ●Module: 1.5 ●Number of teeth: 18 ●Reference circle diameter (mm): φ27 ●Tooth width (mm): 9.8 ●Hole diameter (mm): φ8 ●Total length (mm): 22.96 ●Tooth tip circle diameter (mm): φ29.68 ●Assembly distance (mm): 40.74 ●Hub outer diameter (mm): φ22 ●Hub length (mm): 12.5 ●Gear precision: JIS B 1704 (ISO) Class 4 ●Pressure angle: 20° Material/Finish: ●SUS304 (stainless steel bar) Caution: ●If the mating gear is used in combination with a product from another company, problems may occur.
