KG Straight Bevel Gear B1.5S 36-10H B1.5S 36-10H 1 pc

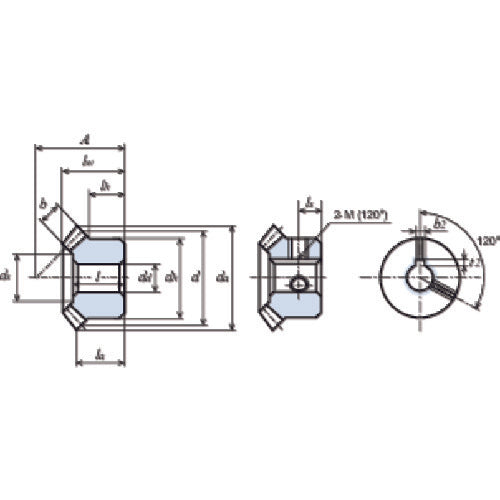

Catalogue number: B1.5S 36-10H Features: * Bevel gears that are easy to modify. * Products with an H at the end of the part number have high-frequency hardened teeth. Applications: * Used in general industrial machinery, food machinery, medical equipment, etc. Specifications: ●Tooth ratio: 2 ●Module: 1.5 ●Number of teeth: 36 ●Pitch diameter (mm): φ54 ●Tooth width (mm): 9.8 ●Hole diameter (mm): φ10 ●Total length (mm): 18.54 ●Tooth tip diameter (mm): φ55.34 ●Assembly distance (mm): 26.75 ●Hub outer diameter (mm): φ30 ●Hub length (mm): 10.0 ●Gear precision: JIS B 1704 (ISO) Class 3 (teeth high-frequency hardened: Class 4) ●Pressure angle: 20° ●Twist angle 35° ●High-frequency hardening Material/Finish: ●S45C (Carbon steel for mechanical structures) Caution: ●Using the mating gear in combination with a product from another company may cause malfunctions.
