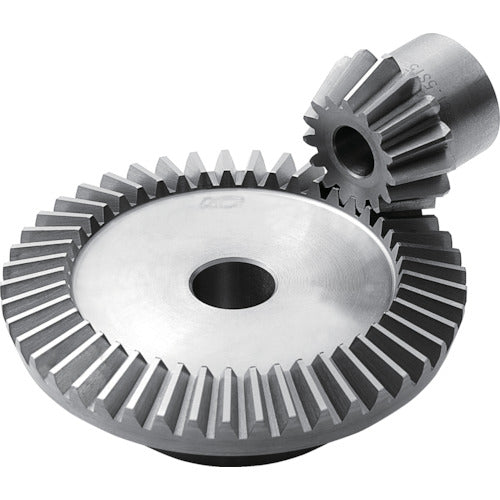

KG Straight Bevel Gear B2S 36-12 B2S 36-12 1 pc

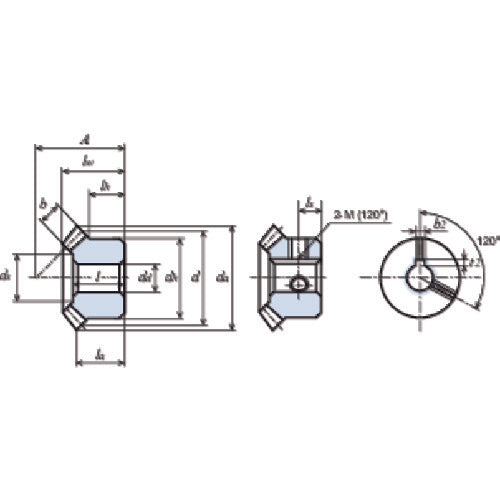

Catalogue number: B2S 36-12 Features: * Bevel gears that are easy to modify. * Products with an H at the end of the part number have high-frequency hardened teeth. Applications: * Used for general industrial machinery, food machinery, medical equipment, etc. Specifications: ●Tooth ratio: 2 ●Module: 2 ●Number of teeth: 36 ●Pitch diameter (mm): φ72 ●Tooth width (mm): 12.6 ●Hole diameter (mm): φ12 ●Total length (mm): 24.07 ●Tooth tip diameter (mm): φ72.15 (φ73.79) ●Assembly distance (mm): 35.21 ●Hub outer diameter (mm): φ36 ●Hub length (mm): 13.0 ●Gear precision: JIS B 1704 (ISO) Class 3 (high-frequency hardened teeth: Class 4) ●Pressure angle: 20° ●Twist angle 35° Material/Finish: ●S45C (Carbon steel for mechanical structures) Caution: ●If the mating gear is used in combination with a product from another company, malfunctions may occur.
