KG Straight bevel gear B80B 40*6 B80B 40*6 1 pc

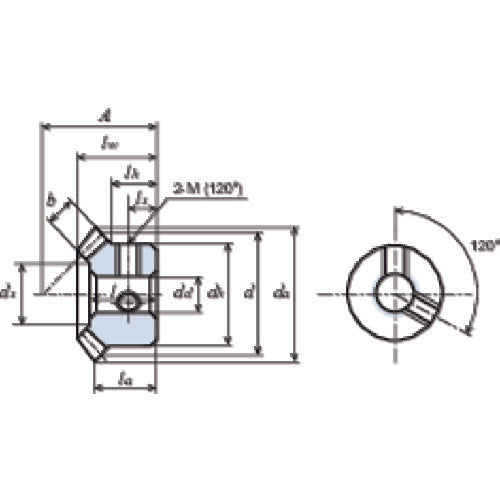

Catalog number: B80B 40*6 Features: ●Bevel gears that are easy to modify. Applications: ●Used for general industrial machinery, food machinery, medical equipment, etc. Specifications: ●Tooth ratio: 2 ●Module: 0.8 ●Number of teeth: 40 ●Reference circle diameter (mm): φ32 ●Tooth width (mm): 4.5 ●Hole diameter (mm): φ6 ●Total length (mm): 11.01 ●Tooth tip circle diameter (mm): φ32.72 ●Assembly distance (mm): 16.46 ●Hub outer diameter (mm): φ20 ●Hub length (mm): 6.0 ●Mounting screw M: 2-M4 ●Mounting screw ls: 3 ●Included screws (2 pieces): ○ ●Gear accuracy: JIS B 1704 Class 4 ●Pressure angle: 20° Material/Finish: ●Free-cutting brass (C3604B) Set contents/Accessories: ●Includes 2 set screws. Caution: ● Using the same gear in combination with a product from another company may result in malfunction.
