KG Straight bevel gear B80SU40*6 Module 0.8 Pressure angle 20 degrees Number of teeth 40 B80SU40*6 1 piece

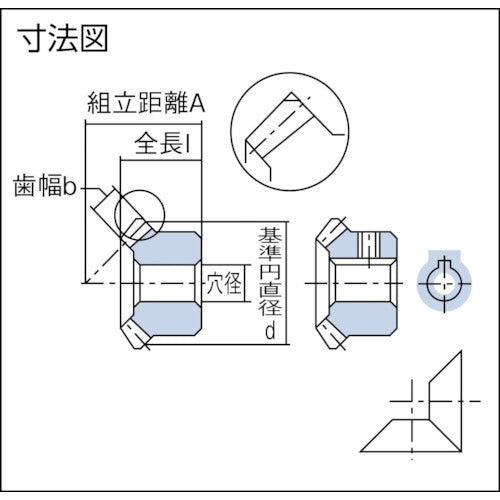

Catalog number: B80SU40*6 Features: ●Bevel gears that are easy to modify. Applications: ●Used for general industrial machinery, food machinery, medical equipment, etc. Specifications: ●Tooth ratio: 2 ●Module: 0.8 ●Number of teeth: 40 ●Reference circle diameter (mm): φ32 ●Tooth width (mm): 4.5 ●Hole diameter (mm): φ6 ●Total length (mm): 11.01 ●Tooth tip circle diameter (mm): φ32.72 ●Assembly distance (mm): 16.46 ●Hub outer diameter (mm): φ20 ●Hub length (mm): 6.0 ●Mounting screw M: M4 ●Mounting screw ls: 3.5 ●Gear precision: JIS B 1704 (ISO) Class 4 ●Pressure angle: 20° Material/Finish: ●SUS304 (stainless steel bar)
