KG Straight Bevel Gear B80S 20 B80S 20 1 pc

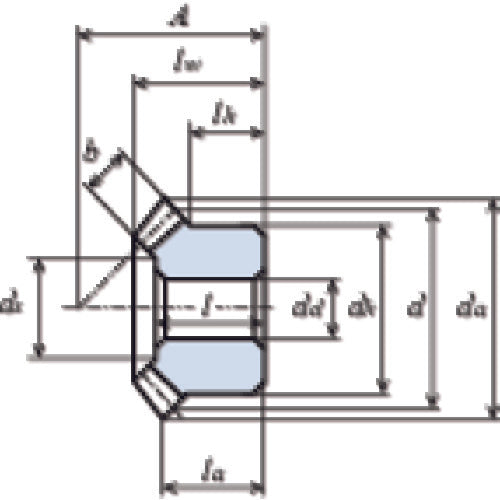

Catalog number: B80S 20 Features: ● Bevel gears that are easy to modify. ● Products with an H at the end of the part number have high-frequency hardened teeth. Applications: ● Used in general industrial machinery, food machinery, medical equipment, etc. Specifications: ● Tooth ratio: 2 ● Module: 0.8 ● Number of teeth: 20 ● Reference circle diameter (mm): φ16 ● Tooth width (mm): 4.5 ● Hole diameter (mm): φ5 ● Total length (mm): 10.79 ● Tooth tip circle diameter (mm): φ17.43 ● Assembly distance (mm): 22.5 ● Hub outer diameter (mm): φ12 ● Hub length (mm): 5.5 ● Gear precision: JIS B 1704 (ISO) Class 3 (High-frequency hardened teeth: Class 4) ● Pressure angle: 20° Material/Finish: ● S45C (Carbon steel for machine construction) Caution: ● Using a mating gear in combination with a product from a company other than ours may cause problems.
