KG Straight bevel gear B80S 40*6 B80S 40*6 1 pc

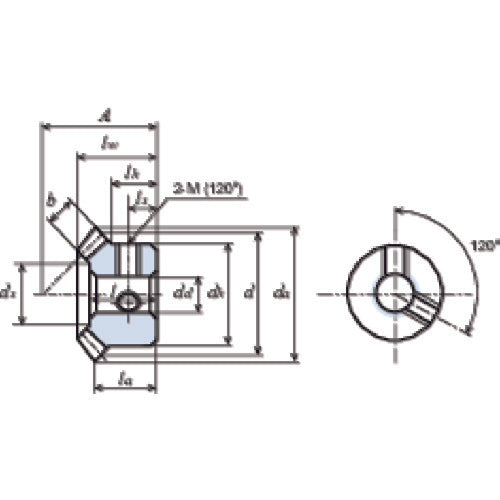

Catalog number: B80S 40*6 Features: ● Bevel gears that are easy to modify. ● Products with an H at the end of the part number have high-frequency hardened teeth. Applications: ● Used for general industrial machinery, food machinery, medical equipment, etc. Specifications: ●Tooth ratio: 2 ●Module: 0.8 ●Number of teeth: 40 ●Reference circle diameter (mm): φ32 ●Tooth width (mm): 4.5 ●Hole diameter (mm): φ6 ●Total length (mm): 11.01 ●Tooth tip circle diameter (mm): φ32.72 ●Assembly distance (mm): 16.46 ●Hub outer diameter (mm): φ20 ●Hub length (mm): 6.0 ●Mounting screw M: 2-M4 ●Mounting screw ls: 3 ●Included screws (2 pieces): ○ ●Gear precision: JIS B 1704 (ISO) Class 3 (high-frequency hardened teeth: Class 4) ●Pressure angle: 20° Material/Finish: ●S45C (Carbon steel for mechanical construction) Set contents/Accessories: ●2 set screws are included. Caution: ●If the mating gear is used in combination with a product from another company, malfunctions may occur.
