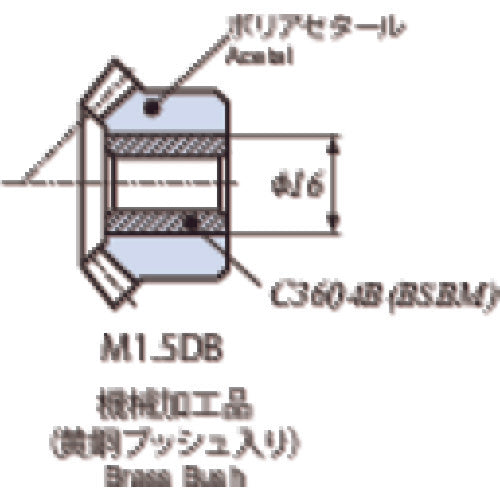

KG Straight Miter Gear M1.5DB 20-3295 M1.5DB 20-3295 1 pc

Catalog number: M1.5DB 20-3295 Features: ● Straight tooth miter gear. Applications: ● For use in general industrial machinery, food machinery, medical equipment, etc. Specifications: ● Module: 1.5 ● Number of teeth: 20 ● Reference circle diameter (mm): φ30 ● Assembly distance (mm): 32 ● Hole diameter (mm): φ9.5 ● Total length (mm): 22 ● Tooth width (mm): 6 ● Hub outer diameter (mm): φ24 ● Tooth ratio 1/1 ● Gear precision: JIS B 1704 (ISO) Class 4, pressure angle: 20° ● Tooth ratio 1:1 Material/Finish: ● White polyacetal Caution: ● Using the mating gear in combination with a product from another company may cause malfunctions.
