KG Straight Miter Gear M1.5D 20-2810 M1.5D20-2810 1 pc

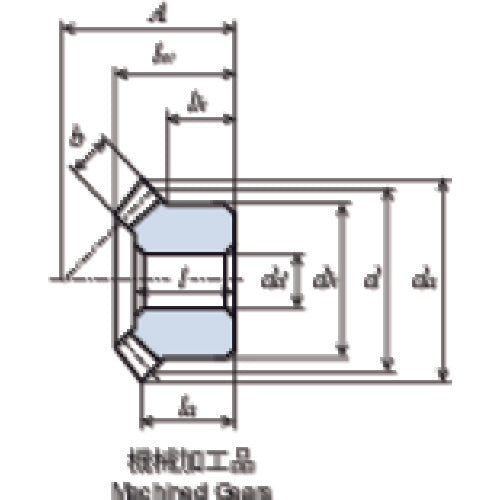

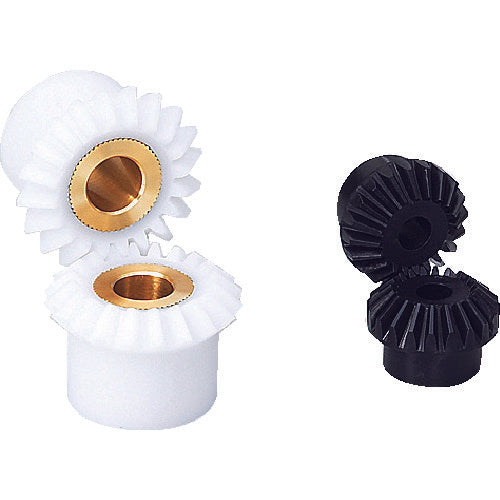

Catalog number: M1.5D20-2810 Features: ● Straight tooth miter gear. Applications: ● For use in general industrial machinery, food machinery, medical equipment, etc. Specifications: ● Module: 1.5 ● Number of teeth: 20 ● Reference circle diameter (mm): φ30 ● Assembly distance (mm): 28 ● Hole diameter (mm): φ16.5 ● Total length (mm): 18.53 ● Tooth width (mm): 6.8 ● Hub outer diameter (mm): φ24 ● Tooth ratio 1/1 ● Pressure angle: 20° ● Tooth ratio 1:1 Material/Finish: ● White polyacetal Caution: ● Using the mating gear in combination with a product from another company may cause malfunctions.
