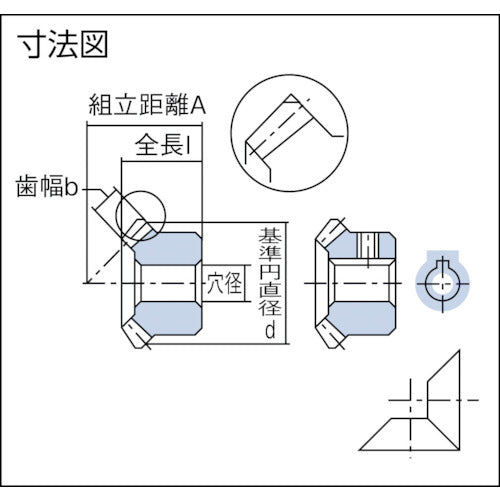

Catalog number: M80B20-1605 Features: ●JIS Class 4. Applications: ●For use in general industrial machinery, food machinery, medical equipment, etc. Specifications: ●Module: 0.8 ●Number of teeth: 20 ●Reference circle diameter (mm): φ16 ●Assembly distance (mm): 16.0 ●Hole diameter (mm): φ5 ●Total length (mm): 11.00 ●Tooth width (mm): 3.7 ●Tooth tip circle diameter (mm): φ17.13 ●Hub outer diameter (mm): φ12 ●Hub length (mm): 6 ●Tooth ratio: 1 ●Gear precision: JIS B 1704 (ISO) Class 4 ●Pressure angle: 20° Material/Finish: ●Free-cutting brass (C3604B) Caution: ●For stainless steel (SUS304L), use in combination with metal injection MIM miter gears. ●If the mating gear is used in combination with a product from another company, malfunctions may occur.
