KG Straight Miter Gear M80SU25*1805 M80SU25*1805 1 pc

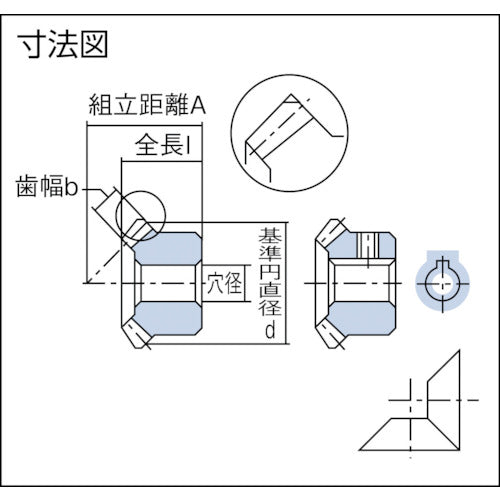

Catalog number: M80SU25*1805 Features: ●JIS Class 4. Applications: ●Used for general industrial machinery, food machinery, medical equipment, etc. Specifications: ●Module: 0.8 ●Number of teeth: 25 ●Reference circle diameter (mm): φ20.0 ●Assembly distance (mm): 18 ●Hole diameter (mm): φ5 ●Mounting screw M: M3 ●Mounting screw ls: 3 ●Total length (mm): 11.67 ●Tooth width (mm): 4.7 ●Tooth tip circle diameter (mm): φ21.13 ●Hub outer diameter (mm): φ16 ●Hub length (mm): 6 ●Tooth ratio: 1 ●Gear precision: JIS B 1704 Class 4 (excluding metal injection MIM miter gears) ●Pressure angle 20° ●Tooth ratio: 1:1 Material/Finish: ●SUS304 (stainless steel bar) Caution: ●For stainless steel (SUS304L), use in combination with metal injection MIM miter gears. ●If the mating gear is used in combination with a product from another company, malfunctions may occur.
