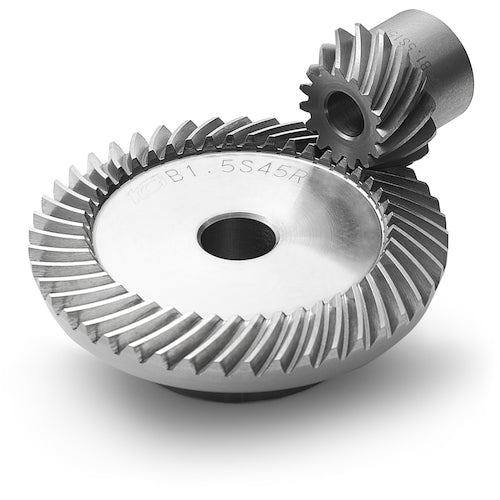

KG Spiral Bevel Gear B1.5S 18L-8 B1.5S 18L-8 1 pc

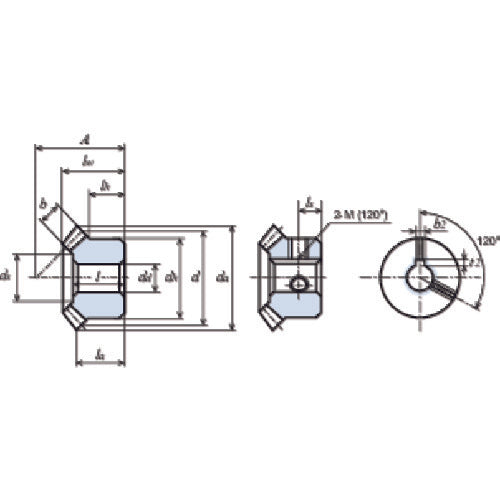

Catalog number: B1.5S 18L-8 Features: ● Bevel gears that are easy to modify. ● The end of the part number has been induction hardened. Applications: ● For use in general industrial machinery, food machinery, medical equipment, etc. Specifications: ●Tooth ratio: 2 ●Module: 1.5 ●Number of teeth: 18 ●Pitch diameter (mm): φ27 ●Tooth width (mm): 9.8 ●Hole diameter (mm): φ8 ●Total length (mm): 22.96 ●Tooth tip diameter (mm): φ30.09 ●Assembly distance (mm): 40.74 ●Hub outer diameter (mm): φ22 ●Hub length (mm): 12.49 ●Twist direction: L ●Hole length (mm): 21 ●Tooth tip angle: 30°41′ ●Gear precision: JIS B 1704 (ISO) Class 3 (High-frequency hardened product: Class 4) ●Twist angle 35° ●Pressure angle: 20° Material/Finish: ●S45C (Carbon steel for mechanical structures) Caution: ●Using the mating gear in combination with a product from another company may cause malfunctions.
