KG Spiral Bevel Gear B1.5S 36R-10 B1.5S 36R-10 1 pc

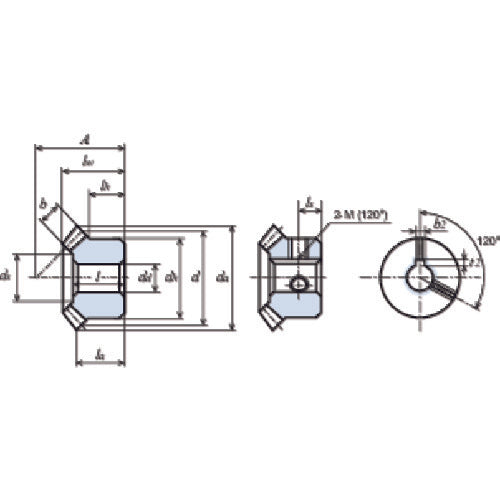

Catalog number: B1.5S 36R-10 Features: ● Bevel gears that are easy to modify. ● The end of the part number has been induction hardened. Applications: ● For use in general industrial machinery, food machinery, medical equipment, etc. Specifications: ●Tooth ratio: 2 ●Module: 1.5 ●Number of teeth: 36 ●Pitch diameter (mm): φ54 ●Tooth width (mm): 9.8 ●Hole diameter (mm): φ10 ●Total length (mm): 18.01 ●Tooth tip circle diameter (mm): φ54.76 ●Assembly distance (mm): 26.75 ●Hub outer diameter (mm): φ30 ●Hub length (mm): 9 ●Twist direction: R ●Hole length (mm): 15.5 ●Tooth tip angle: 65°57′ ●Gear precision: JIS B 1704 (ISO) Class 3 (High-frequency hardened product: Class 4) ●Twist angle 35° ●Pressure angle: 20° Material/Finish: ●S45C (Carbon steel for mechanical structures) Caution: ●Using the mating gear in combination with a product from another company may cause malfunctions.
